The Precision 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Precision 5000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Precision Series is available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel and covers the standard type 161 door preparation..

Touchbar Clearance

The Precision Exit Devices accommodate doors with vision lites or glass windows, where the vision lite frames or moldings project up to 1/4" beyond the face of the door. Active Case and End Cap Mounting Bracket are mounted on the face of the door without any shims or cutting off the glass molding. These devices have a 1/4" gap between the face of the door and the Touchbar Assembly. This gap allows proper functioning of the devices even on doors which are not perfectly flat. Since the Active Case is mounted directly on the face of the door, it accommodates standard lengths of through bolting screws, lever, and cylinder tail pieces..

Quiet Operation

Sound Dampeners reduce the noise associated with Exit Device operation on the depression and return stroke of the Touchpad.

FEATURES

Doors – For all types of single and double doors with a mullion. For mullions, see page 8. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide openings. For thicker doors, consult us. Furnished standard for 1-3/4" thick, 3'-0" wide openings.

Active Case & Trim – Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.

Active Case Cover & Endcap – High Impact Thermoplastic.

Active Case – Stainless Steel.

Touchbar Sub-Assembly – Zinc Dichromate plated Heavy Wrought Steel.

Touchbar Assembly – Powder Coated Heavy Wrought Steel.

Strikes – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.

Dogging – 1/4 turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height – 40-5/16" from floor standard. May be varied as situation dictates.

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

UL Listed – Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2

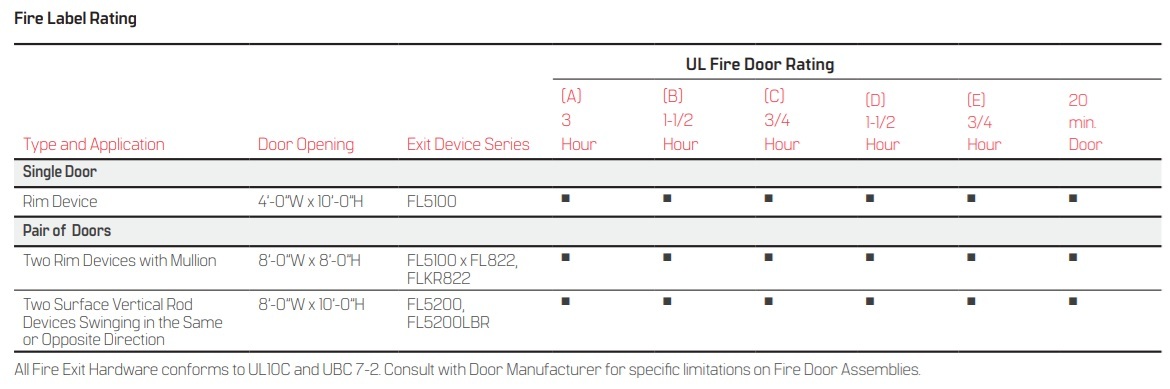

Precision 5000 Fire Rating Chart
