Von Duprin 6212 - Electric Strike for use with Hollow Metal or Aluminum Frame Applications with Mortise or Cylindrical Locks

Von Duprin 6212 Electric Strike

6212 electric strike: for use with mortise locks without deadbolt or cylindrical locks on single door, hollow metal or aluminum frame applications. Fits modified ANSI 115.2 cutout. Designed to replace Von Duprin 3146.

Heavy-duty stainless steel construction Tested to over 250,000 cycles
1500 lbs. holding strength 70 lbs. impact strength.

FSE - Fail Secure (standard) electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.

FS - Fail Safe (Optional) electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.

24VDC standard with 12VDC and AC operation optional.

Features and Benefits

Accepts 3⁄4˝ (19mm) Throw Latchbolt Non-handed Horizontally Adjustable
Strike box is adjustable to compensate for any misalignment of the door or frame Two piece plug connectors are furnished for ease of installation and for removal during strike servicing.

Options

FS - Fail Safe: electric strikes require power to be applied to lock the strike lip.
On loss of power, the strike is unlocked.

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

DS - Dual Switch: Has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or
closed and locked.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.

Specification

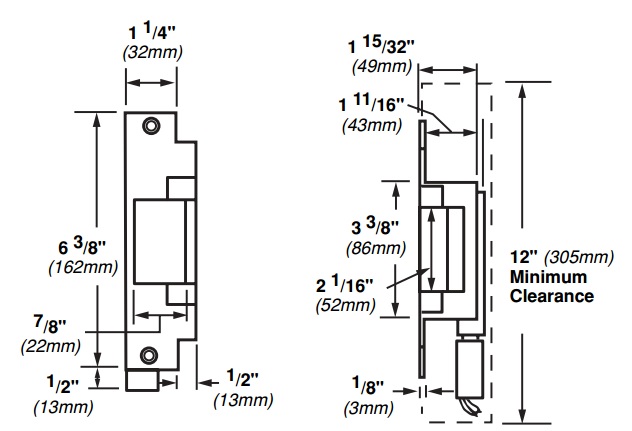

Dimension
