Von Duprin 6221 - Open Back Electric Strike for use with Hollow Metal, Aluminum or Wood Applications with Mortise or Cylindrical Locks

No reviews yet Write a Review
SKU:
VD-6221
Shipping:
Calculated at Checkout
$1,062.56

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Selected Choose Finish is
Adding to cart… The item has been added
  • Security Image 1
Description

Von Duprin 6221 Electric Strike with Open Back

Von Duprin 6221 electric strike open back: For use with mortise locks without deadbolt or cylindrical locks on 13 ⁄4˝ (44mm) thick double door (hollow metal, aluminum or wood) applications. 43 ⁄4˝ (120mm)
minimum stile required. For a concealed vertical rod and mortise device combination, specifyAbackbox. Designed to replace Von Duprin 3071 and 3072.

Heavy-duty stainless steel construction Tested to over 250,000 cycles
1500 lbs. holding strength 70 lbs. impact strength.

FSE - Fail Secure (standard) electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.

24VDC standard with 12VDC and AC operation optional.

Features and Benefits

Accepts 3⁄4˝ (19mm) Throw Latchbolt Non-handed Horizontally Adjustable
Strike box is adjustable to compensate for any misalignment of the door or frame Two piece plug connectors are furnished for ease of installation and for removal during strike servicing.

Options

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

DS - Dual Switch: Has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or
closed and locked.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.

Specification

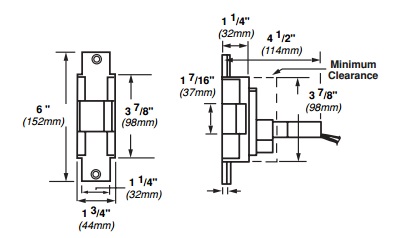

Dimension
