Alarm Lock Trilogy DL3575CR - ELECTRONIC DIGITAL MORTISE LOCKS - Regal Curved Lever Classroom Function

$1,444.00
$937.16
(You save $506.84 )
(No reviews yet) Write a Review
SKU:
AL-DL-3575-CR
Weight:
9.00 LBS
Width x Height x Depth:
10.00 (in)

 x

10.00 (in)

 x

10.00 (in)

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Shipping:
Calculated at Checkout



Alarm Lock Trilogy DL3575CR - Electronic Digital Mortise Locks - Regal Curved Lever Classroom Function

Buy the Alarm Lock Trilogy DL3575CR - Electronic Digital Mortise Lock - Regal Curved Lever Classroom Function at discounted prices from Locksandsafes.com. The DL3575CR is a weatherproof lock which works perfectly in temperatures ranging from -20 to 151 degrees F (-29 to 66 degrees C).

The DL3575CR is a high quality BHMA Grade 1 lock, ideal for use in places like hospitals, schools, airports, retail, pharmacies and offices. The lock provides higher security with features such as temporary lockout after numerous unsuccessful entry attempts.

The lock comes with a rugged metal keypad and can store up to 300 user codes which are easily programmable through the keypad. It is flexible to install and installation does not take much time. At the same time, the lock utilizes 5 AA alkaline batteries, which, with Alarm Lock's unique Flexi Drive Motor, provides up to 5 years life and/or 80,000 operating cycles.

DL3575CR Classroom Lock Model features a stainless steel latchbolt with 3/4” (1.91cm) projection and deadlocking latch. The lock has cylinder with straight cam.

The Alarm Lock DL3575CR lock comes with a beautiful, elegantly designed Regal Curved Lever and a high quality Satin Chrome finish. Other finishes to choose from include Antique Brass, Polished Brass and Polished Chrome which are available upon request.

FEATURES

  • Advanced high-security electronic mortise digital locks with audit trail & timed locking
  • 300 User codes: Master, manager, supervisor & basic users.
  • All Trilogy Mortise Lock Models are weatherproof and operate from -20 to 151 degrees F (-29 to 66 degrees C)
  • Fingertip - or Windows PC-Programmable.
  • Real time clock enables up to 500 scheduled events and holiday schedules.
  • 40,000 Event audit trail provides a printed time/date-stamped log of all electronic activity.
  • Audit trail polling to handheld infrared printer, PC or data transfer module.
  • Standalone access control system with long-life batteries and low battery alert.
  • Choose either left or right-handed, classroom function model
  • Exceptionally durable with both strong clutch mechanism and stainless steel latchbolt and deadbolt (where applicable).
  • Quick Passage mode enabled with any authorized user codes and function code (does not require lock be in program mode)
  • Available in four finishes (US 26D, 26, 5 & 3), plus special order finishes (including US10B).
  • Available in new Regal (curved) handle trim

ADVANCED FEATURES

Scheduled Events: Program to lock/unlock; disable/enable users; 4 built-in time schedules
Audit Trail with Time/Date Stamp: Provides a printable record of all electronic activity, including, Unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc.

  • 4 Programming levels
  • 4 User groups
  • 3 to 6 digit codes
  • One-time service code
  • Total user lockout code
  • First-Manager-In feature set
  • All-time panic exit function from within premises. From the inside of the door, a single turn of the lever simultaneously releases latchbolt and deadbolt (where applicable).
  • Tri-colored LED indicator indicates code acceptance or denial (green or red, respectively), or low battery condition (yellow).
  • Non-volatile memory of both programming and audit trail activity
  • Keypad lockout after numerous attempts to guess codes
  • Programmable Form C Relay functions for scheduled on manual control of CCTV, lighting, ambush function, alarm system, etc.
  • Standard ANSI 115.1 Mortise prep modified with added through-bolt holes.

OPERATIONS

Authorized digital code enables outside lever to retract latchbolt, deadlocking latch and deadbolt (where applicable). Inside lever is always in passage mode and permits instant egress.

TECHNICAL DATA

Operating Temperature: Weatherproof lock operating range from -20 to 151 degrees F (-29 to 66 degrees C)
Keypad: Weatherproof all-metal, 12-button programmable for multi-level access functions.
Programming: Locking modes, event schedules, group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time (3, 10 or 15 seconds), etc. are programmable through the keypad, from the Data Transfer Module (AL-DTM) or using any PC running Alarm Lock DL-Windows Software.
Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTM), any PC using DL-Windows Software, and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
Power: 5AA alkaline batteries extended operations, furnished. Audible low battery alert, visual and audible entry indicators, 80,000 cycles, typical.
Door Thickness: Standard 13/4” (4.46cm) thickness. (Accepts 1 3/8” to 1 7/8” or 3.5 to 4.7cm). Call factory for thicker door requirements.
Backset: 23/4” (7.01 cm)
Door Prep: Standard ANSI 115.1 Mortise prep, modified with added through-bolt holes.
Cylinder: 1-3/8” (3.5cm) mortise cylinder supplied. 13/8” – 1 - 11/2” (3.5 - 3.82cm) mortise cylinders accepted. Classroom Models are supplied with cylinder with straight cam.
Classroom Models: Feature stainless steel latchbolt with 3/4” (1.91cm) projection and deadlocking latch.
Interchangeable Cores: Will accept interchangeable core mortise cylinders with compatible cams. Call us for details.
Trim: Regal curved lever handle.
Handing: Specify Right or Left hand when ordering. If reverse handing is required, lock is field reversible. See installation instructions for directions.
Strike: ASA strike supplied, matched to classroom or deadbolt function model & lock handing. Standard strike is 4-7/8” (12.43cm) and includes combination wood/metal screws.
Finishes: US26D Satin Chrome, US5 Antique Brass, US3 Polished Brass, US26 Polished Chrome. (Other finishes, including US10B, available as special order.)
Compliances: Steelcase lockbody meets BHMA specifications for Grade 1 locks. UL Listed to the 10C Positive Pressure Specification. Latchbolt is UL Listed, and 3-hour fire rated. FCC Certified. ADA compliant levers.

Top

ADDITIONAL INFO

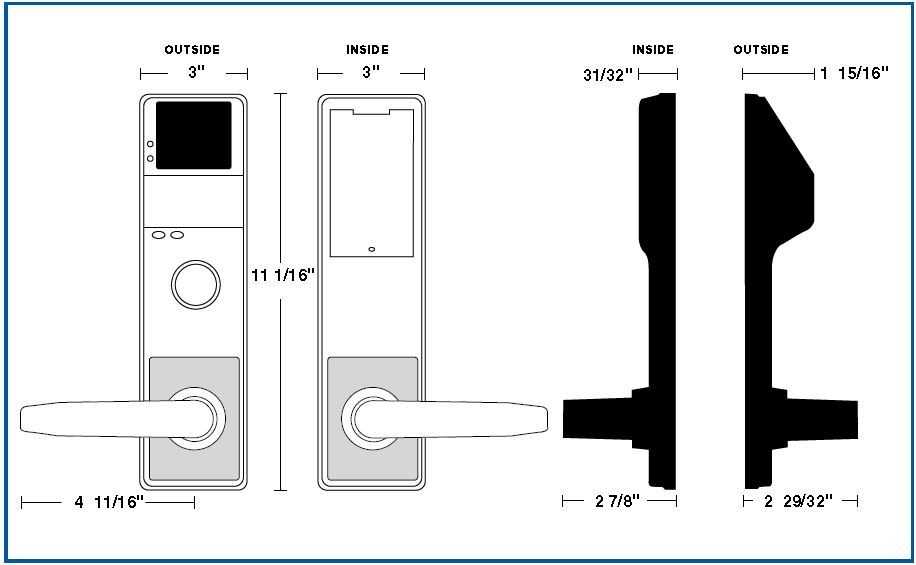

 Alarm Lock DL3575CR Inside Outside Diagram

ACCESSORIES

Alarm Lock DL3575CR Accessories

Top

DOWNLOADS

Alarm Lock Trilogy DL3500 Series Documentation
