Adams Rite Steel Hawk 4300 Electrified Deadlatch (eLatch)

No reviews yet Write a Review
Shipping:
Calculated at Checkout
$326.88
MSRP: $392.00
(You save $65.12 )

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Selected Choose Finish (Click link below for our definitive list of hardware finishes) is
Adding to cart… The item has been added
  • Security Image 1
Description

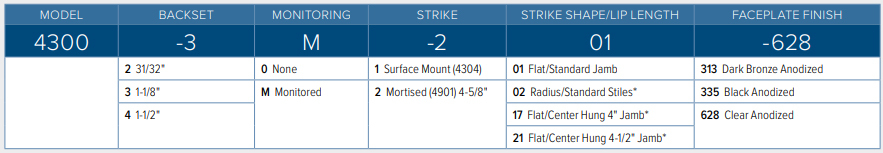

Adams Rite 4300 Deadlatches How To Order

Adams Rite Steel Hawk 4300 Electrified Deadlatch (eLatch), 31/32", 1-1/8", or 1-1/2" backset

The Adams Rite 4300 Electrified Deadlatch is a non-handed, narrow backset, electrified deadlatch designed for easy integration with access control systems.

Function

The Adams Rite 4300 Electrified Deadlatch seamlessly combines electrified locking hardware with access control while working within standard narrow stile aluminum entrance door preparations. Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control device such as keypad or card reader. Fail secure lock with optional form “C” latch status monitor. The standard fail secure 4300 Electrified Deadlatch operates on 12, 16, or 24 VDC power and is rated for continuous duty. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required.

Operation

Turn key, apply voltage, or operate handle or paddle to release the spring-loaded latchbolt. Electrically-rated for continuous duty for timed applications. Easily interfaces with other access control system elements. Available in fail secure configuration only. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Features

Cylinder Backset

31/32" [24.6 mm], 1-1/8" [28.6 mm], and 1-1/2" [38.1 mm].

Case

The Adams Rite 4300 Electrified Deadlatch has a steel case with corrosion-resistant plating. Measures 15/16" x 5-13/16" x depth [23.8 mm x 147.6 mm x depth]. Depth varies by backset (see table below).

Latchbolt

Stainless steel. Measures 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw.

Auxiliary Bolt

All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.

Strike

Pick from optional strikes. 4304 no-cut surface mounted strike for easy retrofits. Specify 4901-01 mortised-flush version when covering existing MS® deadlock preparation or for new applications. 4901-02 strike is available with radius profiles for pairs of doors and with extended lips of center-hung or thick door applications.

Finishes

Click here for our Definitive List of Door Hardware Finishes

Standard Package

Individually boxed with strike plate, flat and radius faceplates, and mounting screws. Supplied with 4581 Universal Cam Plug to work with specified handles or paddle operators. Cylinder, paddle, handle available separately.

Shipping Weight

1-1/4 lbs [0.57 kg].

Product Note

The 4600M with monitoring switch option cannot be used in conjunction with the 4300 Electrified Deadlatch.

Electrical

Voltage

Field-selectable to match power source of 12, 16, or 24 VDC.

Current Draw/Amps

0.44A at 12VDC

0.458A at 16VDC*

0.23A at 24VDC

*Required 16 VDC adapter (P/N VA 7400-16VDC)

Options

Backset, strike, and finish must be specified when ordering.

Optional form “C” latch status monitoring available.

Adams Rite 4300 Electrified Deadlatch Dimensions



Adams Rite 4300 Electrified Deadlatch Stile Preparation

Adams Rite 4300 Electrified Deadlatch Paddle and Cylinder Installation

DOWNLOADS

Click here to download Adams Rite 4300 Series Catalog
Click here to download Adams Rite 4300 Series Installation Instruction
Click here to download Price List
