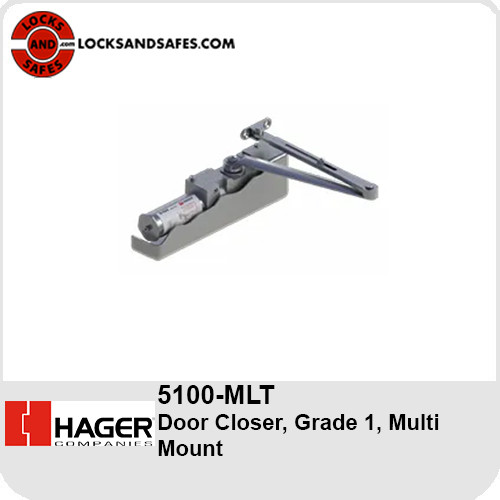

Hager 5100-MLT Multi Mount Door Closer | Hager 5100 Series Grade 1 Door Closer

Hager 5100-MLT Multi Mount Door Closer | Hager 5100 Series Grade 1 Door Closer

Certifications:
BHMA Certified ANSI A156.4, adjustable sizes 1-6
ADA compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for up to 3 hours
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated
5100 Door Closer EPD

Door Thickness:
1-3/4" (44 mm) - standard
1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional

Fasteners:
Self-reaming, self-tapping wood and machine screws
Sex nuts and bolts

Finishes:
ALM, BLK, BRZ, DBZ, GOL
Rust inhibiting primer - Standard

Handing:
Non-handed

Material:
Cast iron, treated with rust inhibiting primer - standard

Maximum Door Weight:
330 lbs.

Notes:
To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly.
See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
Accessories may not be available in all finishes. Please contact us.

Springs:
One piece seamless steel spring tube Double heat-treated, steel-tempered springs Precision-machined, heat-treated steel piston

Valves:
Adjustable backcheck, sweep, and latching valves- standard
Delayed action valve - optional
All valves are staked
