Description

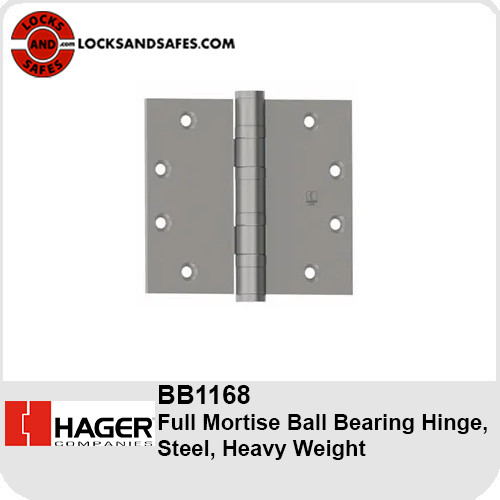

Hager BB1168 Full Mortise Commercial Hinges | Heavy Weight Ball Bearing Hinges
Product Description
Full Mortise, Ball Bearing, Heavy Weight
Applications
For use on heavy weight doors and doors requiring high frequency service
Certifications
ANSI A8111
UL Listed
Features
Four ball bearings
Removable or non-removable pin with button tip and plug
Available in two different leaf sizes
Fire Rating
Complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles
5
Material
Steel with Steel Pin
Options
Stamped with UL logo when ordered for export
Unequal top/bottom available in non-removable or removable pin
Sizing Chart
