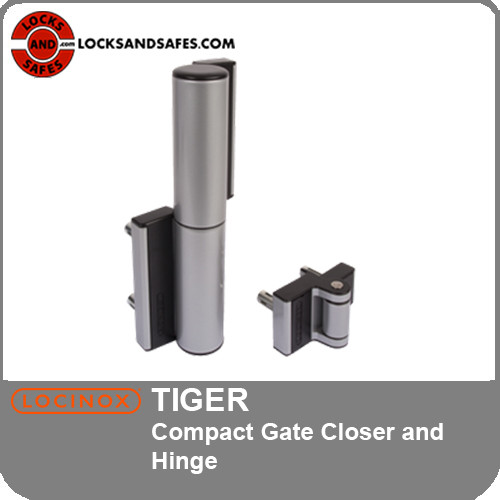

Locinox TIGER | Compact 180° Hydraulic Gate Closer and Hinge for Gates up to 440 lbs
180° self-closing hydraulic hinge with precise adjustments on speed and final snap. The aluminum powder coated housing and unique high-tech components allow the Tiger to function perfectly in any weather situation. We highly recommend the Tigerdrill for an even more efficient installation. The Puma hinge is included.
SPECIFICATIONS
• 180° self-closing hinge with patented hydraulic damping
• Compact design with high quality components
• Weatherproof aluminum housing designed for exterior use
• Patented hydraulic damping - consistent closing speed, regardless of temperature
• For left and right turning gates
• Fast and easy fixation with Quick-Fix bolts
• Installation gap 7/16" up to 1" (5/8" adjustability)
• 3/4" vertical adjustability
• ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more

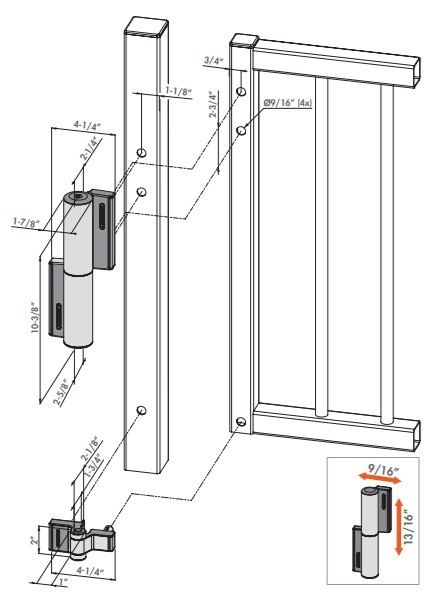

Locinox Tiger Closer Dimensions
