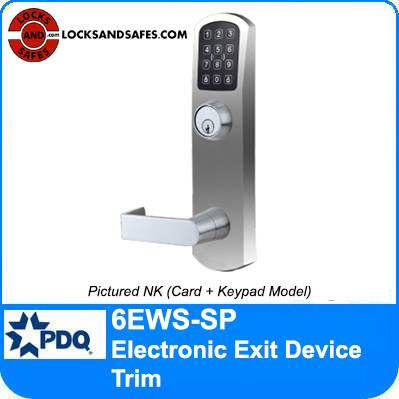

PDQ 6EWS-SP Exit Trim
HANDING
Unsure of how to determine handing? See our Door Handing guide for more information.
FEATURES
• Built from PDQ’s World-Class 6W Series Exit Device Trim
• For use with PDQ’s 6300 Series RIM and Surface Vertical Rod
• 4 AA Alkaline batteries last up to 2 years or 5V DC
• Able to schedule specific access windows
• Log and track access events and status
• Enable auto lock/unlock for enhanced security
• Battery status and low battery alerts
• Indoor use only
SPECIFICIATIONS
DOOR THICKNESS
• 1-3/4” to 2-1/4"
CREDENTIALS
• RFID • Smartphone • PIN • Mechanical Key
KEYWAYS
• Conventional • SFIC • LFIC • High Security • UL437
CREDENTIAL COMPATIBILITIES
• Prox (Optional) • MIFARE DESFire EV1/EV2/EV3/Light
• MIFARE Ultralight EV1/AES • MIFARE Classic
COMMUNICATION
• BLE 4.2 • BLE 5.2
ENCRYPTION
• AES 256
BATTERIES REQUIRED
• 4 AA Alkaline Batteries
OPERATING TEMPERATURES
• -20C to 65C
• 0-95% Humidity (Non-Condensing)
CERTIFICATIONS & COMPLIANCES
• FCC Part 15 • UL/cUL 10C 3-Hour
• Complies with ADA (Americans with Disabilities Act)
MODES
• Standalone • Online
COUNTRY OF ORIGIN
• Assembled in USA
Template
