PDQ GT276 Indicator Lock | PDQ GT Series Grade 1 Cylindrical Locks
The GT276 is a Grade 1 heavy duty cylindrical lock built for privacy bedroom and bathroom applications. A push button on the inside lever locks the outside lever, and a built-in occupancy indicator shows whether the room is in use, with emergency release from outside, by rotating the inside lever, or automatically when the door closes. It's a fit for federal and state government, healthcare, higher education, hospitality, houses of worship, industrial, K-12, office, and public building projects. UL listed, certified to ANSI/BHMA A156.2 Grade 1, ADA and ICC/ANSI 117.1 compliant.

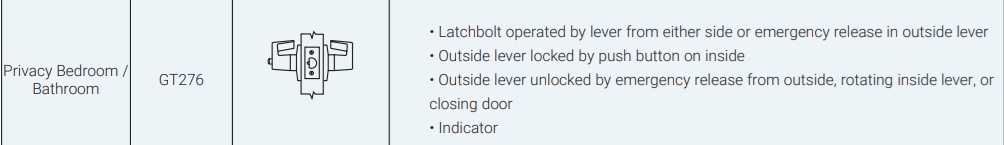

FUNCTION
SPECIFICATIONS
FOR DOORS
1-3/4”” to 2-1/8”
APPLICATION
Through door thru-bolting
DOOR PREP
• Standard 160 prep for 2-3/8” backset
• Standard 161 for 2-3/4” backset
• Both preps will require additional thru bolt holes
BACKSET
• 2-3/4”
• 2-3/8”
CHASSIS
• Zinc Plated
FRONT
• 2-1/4” x 1-1/8”
• Stainless Steel or Wrought Brass
STRIKE
• ASA standard
• T-Strike or Full Lip Strike optional
• Stainless Steel or Wrought Brass
LEVERS
• Philadelphia, Boston, Miami
• Pressure cast zinc
ROSE
• 3-9/16” DIA Wrought
LATCHBOLT
• 1/2” throw
HAND
• Non-handed
TRIM
• PHL, BSN or MIA Levers
• Wrought Brass Roses, Bronze or Zinc
CERTIFICATIONS, LISTINGS, COMPLIANCES
• UL listed for 3 hrs, for single doors
• Certified to ANSI/BHMA A156.2, Grade 1
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

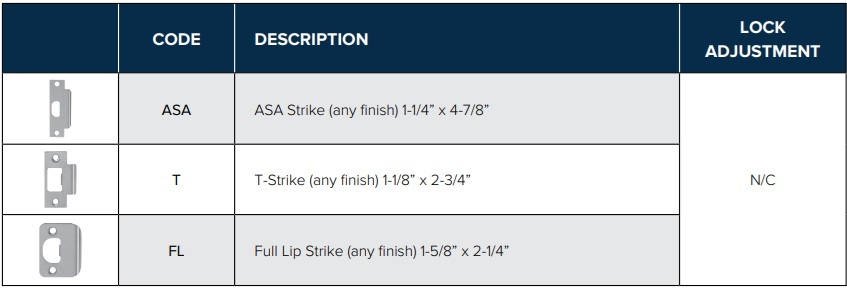

STRIKES
ASA strike included with every GT276. Please contact us if a different strike is required.

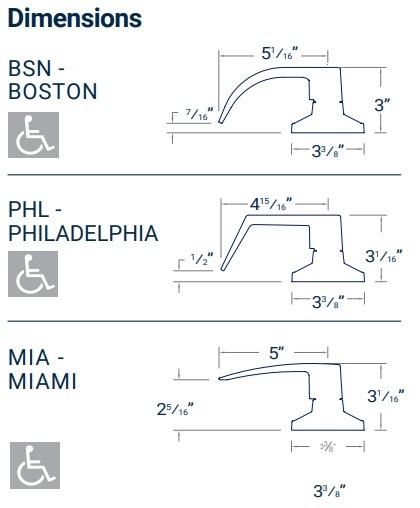

PDQ GT276 SERIES GRADE 1 CYLINDRICAL LOCKS - LEVER STYLES AND DIMENSIONS
- Option:Choose Backset (What is a Backset? Click link here to know more):
