PDQ KMS-SP Deadbolt
HANDING
Unsure of how to determine handing? See our Door Handing guide for more information.

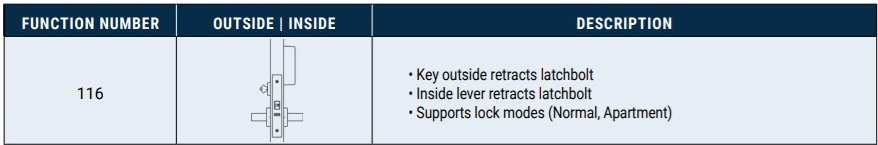

PDQ KMS-SP FUNCTIONS
FEATURES
• Built from PDQ’s KM Series Heavy Duty Deadbolt
• Designed for quick installation
• 4 AA Alkaline batteries last up to 2 years or 5V DC
• Able to schedule specific access windows
• Log and track access events and status
• Monitors and protects openings with door obstruction alerts
• Battery status and low battery alerts
SPECIFICIATIONS
DOOR THICKNESS
• 1-3/8” to 1-3/4”
BACKSET
• 2-3/8” - 2-3/4” (Adjustable)
CREDENTIALS
• RFID
• Smartphone
• PIN
• Mechanical Key
KEYWAYS
• Conventional
• SFIC
• High Security
• UL437
CREDENTIAL COMPATIBILITIES
• Prox (Optional)
• MIFARE DESFire EV1/EV2/EV3/Light
• MIFARE Ultralight EV1/AES
• MIFARE Classic
COMMUNICATION
• BLE 4.2
• BLE 5.2
ENCRYPTION
• AES 256
BATTERIES REQUIRED
• 4 AA Alkaline Batteries
OPERATING TEMPERATURES
• -20C to 65C
• 0-95% Humidity (Non-Condensing)
CERTIFICATIONS & COMPLIANCES
• FCC Part 15
• UL/cUL 10C 20-Minutes
• Complies with ADA (Americans with Disabilities Act)
MODES
• Standalone
• Online
