PDQ MRS-SP Mortise Lock
HANDING
Unsure of how to determine handing? See our Door Handing guide for more information.

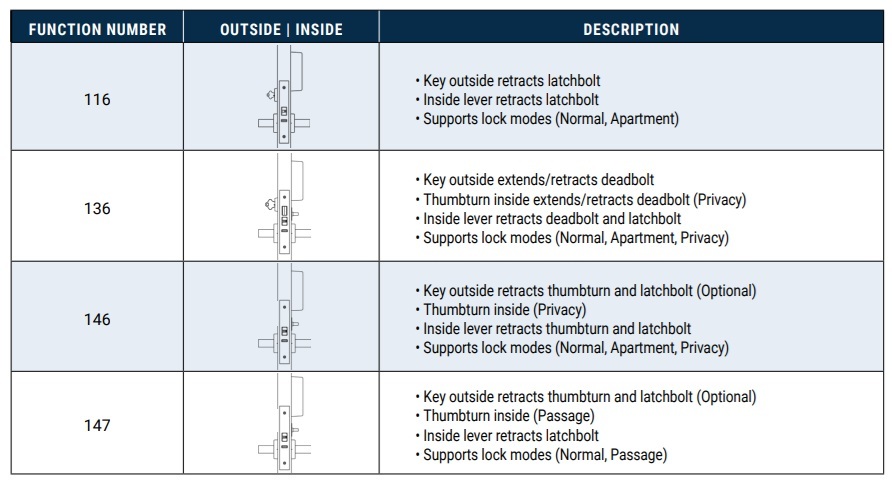

PDQ MRS-SP FUNCTIONS
FEATURES
• Built from PDQ’s World-Class MR Series Grade 1 Mortise Lock
• Designed for quick installation
• 4 AA Alkaline batteries last up to 2 years or 5V DC
• Able to schedule specific access windows
• Log and track access events and status
• Enable auto lock/unlock for enhanced security
• Battery status and low battery alerts
• Do not disturb mode that temporarily blocks access
• Key override lets you know when the key has been used
• Latchbolt monitor lets you know when the lock has been used
• Monitor egress with request to exit function
SPECIFICIATIONS
DOOR THICKNESS
• 1-3/4” (Standard)
• 2" • 2-1/4" (Optional)
CREDENTIALS
• RFID
• Smartphone
• PIN
• Mechanical Key
KEYWAYS
• Conventional
• SFIC
• LFIC
• High Security
• UL437
CREDENTIAL COMPATIBILITIES
• Prox (Optional)
• MIFARE DESFire EV1/EV2/EV3/Light
• MIFARE Ultralight EV1/AES
• MIFARE Classic
COMMUNICATION
• BLE 4.2
• BLE 5.2
ENCRYPTION
• AES 256
BATTERIES REQUIRED
• 4 AA Alkaline Batteries
OPERATING TEMPERATURES
• -20C to 65C
• 0-95% Humidity (Non-Condensing)
CERTIFICATIONS & COMPLIANCES
• FCC Part 15
• UL/cUL 10C 3-Hour
• Complies with ADA (Americans with Disabilities Act)
MODES
• Standalone
• Online
