Function

Classroom Security Intruder Function (ANSI F110)

• Deadlocking latch

• Latch by either lever unless outside lever is locked by key

• Key in either lever locks or unlocks outside lever

• Inside lever always operable

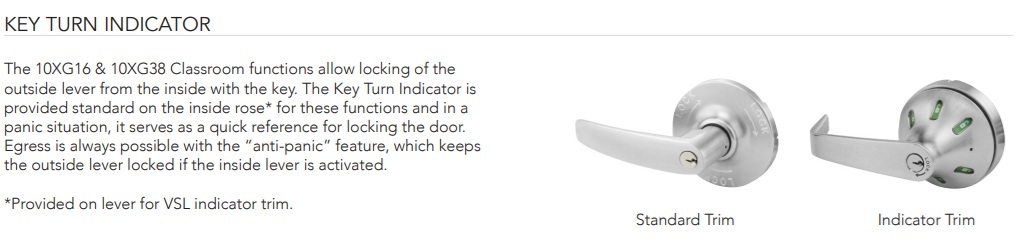

• Key turn indicator standard with this function

Technical Details

Door Prep
ANSI/SDI A250.14

Door Thickness
1-3/4" (44mm) standard - accomodates 1-11/16" - 1-15/16" (43mm - 49mm) doors
1-3/8" (35mm) specify 1- Option for adapter plates
2" (51mm) specify 31- Option & 2" - accomodates 1-15/16" - 2-1/8" (49mm - 54mm) doors
2-1/4" (57mm) specify 31- Option & 2-1/4" - accomodates 2-1/8" - 2-5/16" (54mm - 59mm) doors

Minimum Stile
4-1/2" (114mm)

Handing
Non-handed

Backset
2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)
3-3/4" (95mm) backset w/ 1-1/8" (29mm) front (specify 23- Option)
5" (127mm) backset w/ 1-1/8" (29mm) front (specify 25- Option)

Latchbolt
Stainless steel, 1/2" (13mm) throw

Front
Wrought brass and stainless steel
2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel

Strike
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard
800 curved lip strike (specify 29- Option)
Wrought box strike available (specify WBS- Option)

Cylinder
Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random. (see Options pages 21-22)

Keys
Two nickel silver change keys per lock standard

Masterkeying
Can be master keyed or grand master keyed
Construction key systems available

Outside Locked
Lever Rigid outside locked levers provided standard. For free-wheeling levers specify FW- Option

Sargent 10X Line Lever and Rose Options

Note: For Levers and Trims other than L Lever and L Rose, Please contact us. This is only available if you have selected single indicator option.

Indicator Options
