Sargent 10XU65 BHW Privacy Function (ANSI F76A) | Sargent 10X BHW Behavioral Health Trim
Function
Privacy (ANSI F76A)

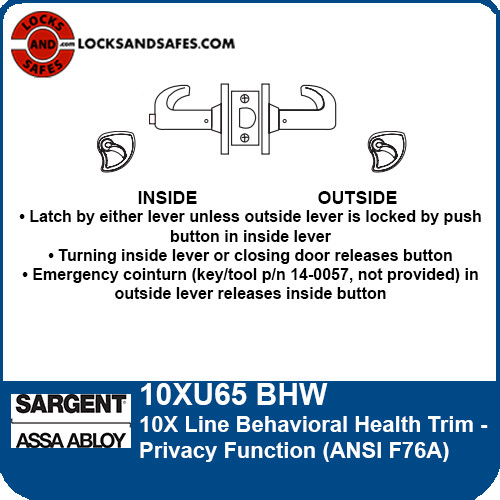

• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Emergency cointurn (key/tool p/n 14-0057, not provided) in outside lever releases inside button
Technical Details
Door Prep
ANSI/SDI A250.14 modified. Refer to template 4753
Door Thickness
1-3/4" (44mm) thick door adjusts to 2" (51mm)
Minimum Stile
8-1/2" (216mm)
Handing
Handed - must be specified on order
Backset
2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)
3-3/4" (95mm) backset w/ 1-1/8" (29mm) front (specify 23- Option)
5" (127mm) backset w/ 1-1/8" (29mm) front (specify 25- Option)
Latchbolt
Stainless steel, 1/2" (13mm) throw
Front
Wrought brass and stainless steel
2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel
Strike
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard
800 curved lip strike (specify 29- Option)
Wrought box strike available (specify WBS- Option)
Fasteners
6-Lobe security head Torx® standard for exposed fasteners
Finish
32D
Template
