Function

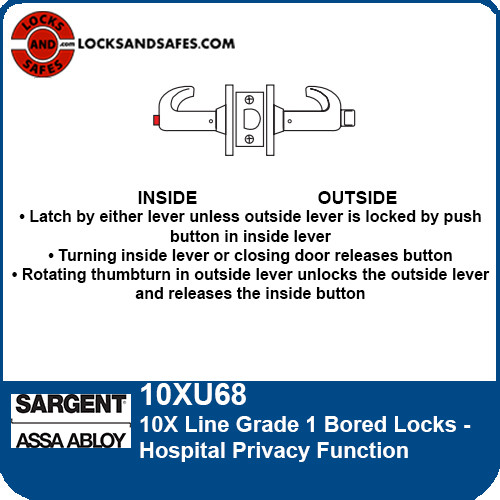

Hospital Privacy Function

• Latch by either lever unless outside lever is locked by push button in inside lever

• Turning inside lever or closing door releases button

• Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button

Technical Details

Door Prep
ANSI/SDI A250.14

Door Thickness
1-3/4" (44mm) standard - accomodates 1-11/16" - 1-15/16" (43mm - 49mm) doors
1-3/8" (35mm) specify 1- Option for adapter plates
2" (51mm) specify 31- Option & 2" - accomodates 1-15/16" - 2-1/8" (49mm - 54mm) doors
2-1/4" (57mm) specify 31- Option & 2-1/4" - accomodates 2-1/8" - 2-5/16" (54mm - 59mm) doors

Minimum Stile
4-1/2" (114mm)

Handing
Non-handed

Backset
2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)
3-3/4" (95mm) backset w/ 1-1/8" (29mm) front (specify 23- Option)
5" (127mm) backset w/ 1-1/8" (29mm) front (specify 25- Option)

Latchbolt
Stainless steel, 1/2" (13mm) throw

Front
Wrought brass and stainless steel
2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel

Strike
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard
800 curved lip strike (specify 29- Option)
Wrought box strike available (specify WBS- Option)
