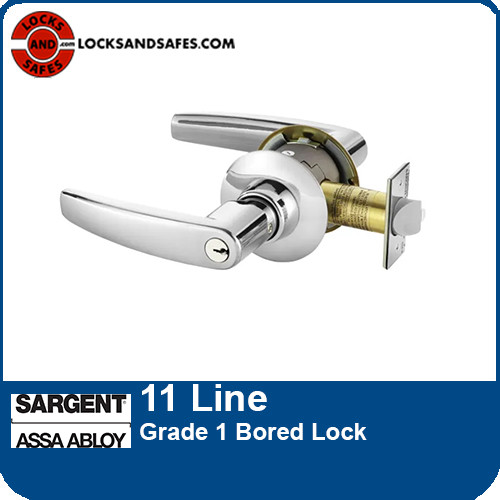

Sargent 11G05 Entrance/Office Function (ANSI F81) | Sargent 11 Line Grade 1 Bored Lock
Function
Entrance/Office (ANSI F81)
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by turn button in inside lever
• Turn button must be released manually
• Key only retracts latchbolt when outside lever is locked
Technical Details
Door Prep
ANSI/SDI A250.14 (161)
Door Thickness
1-3/4" to 2" (44mm to 51mm) thick doors standard
Specify 31- option for doors 2-1/4" to 2-1/2" (57mm x 64mm) centered in door prep, no paneling.
Not available for 1-3/8" (35mm) thick doors
Backsets
2-3/4" (70mm) standard
3-3/4" (95mm) backset (specify 23- Option)
Bearing Assembly
Cast and machined stainless steel
Front
Wrought brass, bronze or stainless steel
2-1/4" x 1-1/8" (57mm x 29mm)
Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel
Strike
Wrought brass, bronze or stainless steel
800 curved lip strike (specify 29- Option)
808 ANSI curved lip strike (standard)
Wrought box strike (specify WBS- Option)
Hand
Non-handed
Levers
Secured with 6 lobe security set screw standard
6 Lobe tool packed with each lock
Roses
Heavy wrought brass, bronze or stainless steel
Latchbolt
Stainless steel bolt 7/8" (22mm) dia. x 1/2" (13mm) throw
Optional: Brass 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify 41- Option)
Cylinder
Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random
Keys
Two nickel silver change keys per lock standard
Masterkeying
Can be masterkeyed or grand masterkeyed
Construction key systems available
Finishes
03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP
Minimum Stile
4-1/4" (108mm) with O rose
4-1/2" (114mm) with L rose
