Sargent 65G37 Classroom Function (ANSI F84) | Sargent 6500 Series Grade 2 Bored Lock
Function
Classroom (ANSI F84)
• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever
• Inside lever always operative
Technical Details
For Doors
1-3/8" (35mm) to 1-3/4" (44mm) only
Backset
2-3/4" (70mm) standard
2-3/8" (60mm) optional (specify 20- option)
Cylindrical Housing
Steel zinc dichromate finish
Front
Wrought brass and stainless steel
2-1/4" (57mm) x 1-1/8" (29mm)
Strike
Wrought brass or stainless steel
808 curved lip ANSI strike (standard)
800 curved lip strike - (specify 29- Option)
505 full lip strike (specify 14- Option)
Hand
Universal, non-handed
Latch
Brass 1/2" (13mm) throw
Keys
Two, nickel silver
Cylinder
Brass, 6- pin, LA keyway standard
Door Prep
ANSI/SDI A250.14
Minimum Stile
4-1/2" (114mm)

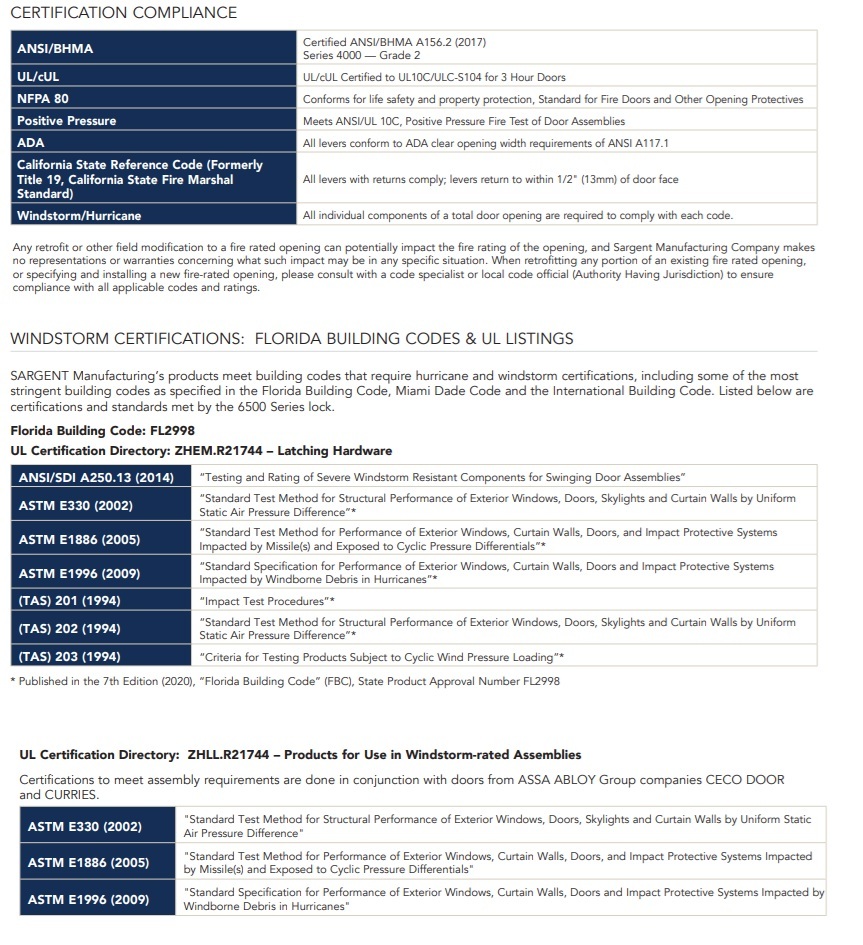

Sargent 6500 Series Certifications

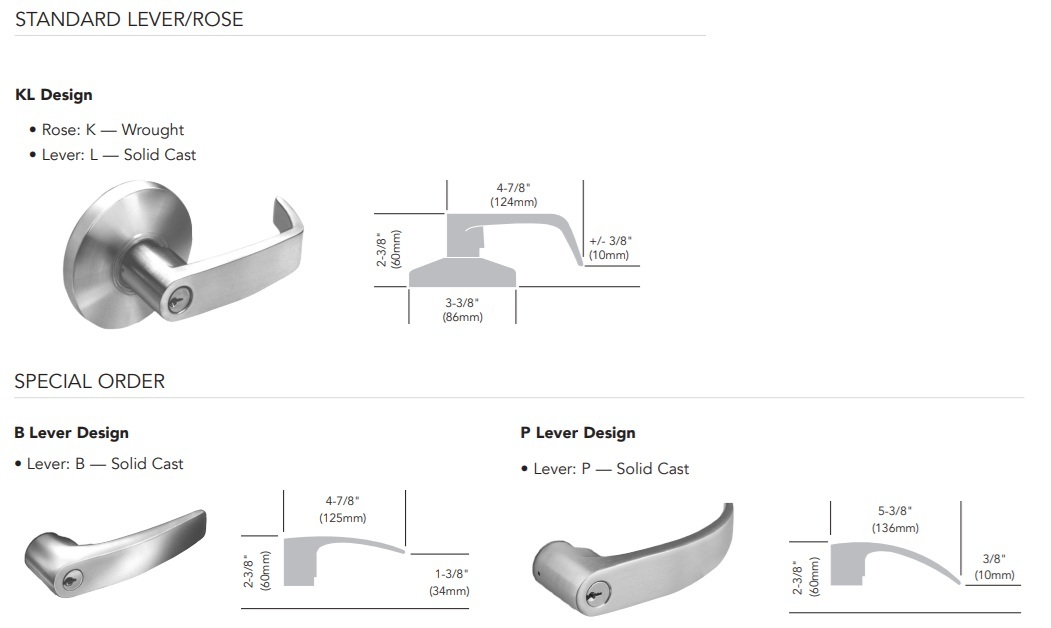

Sargent 6500 Series Levers and Rose Options
Template
