Designed with safety in mind, the 7800 Series knob lock is constructed from quality components – resulting in enhanced security, performance and durability. In addition to its durability, this line also features a foolproof design that allows for intuitive installation and simple maintenance. Ideally suited for non-ADA compliant openings in hospitals, schools, and office buildings.

FUNCTION

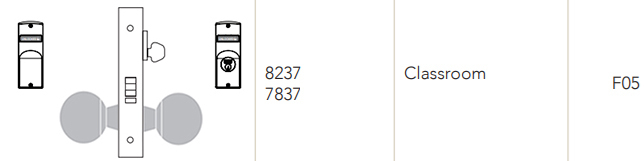

Classroom (ANSI F05)

             INSIDE                OUTSIDE

• Key outside retracts latchbolt, also locks & unlocks outside trim

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• A multi-function 8200/7800 lockbody

SPECIFICATIONS

• For Doors 1-3⁄4" (44mm) thick standard

• Backset 2-3⁄4" (70mm) only

• Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI/BHMA Standard A156.115

• Front adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

• Hubs for Knobs/Levers – 7800: sintered iron copper infiltrated – 8200: cold forged steel

• Auxiliary Deadlatch is stainless steel and non-handed

• Specify hand on order; easily field reversible (if no hand is specified RH will be provided)

• Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)

• Keys: Two, nickel silver (control key or emergency key must be ordered when required)

• Cylinder: Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4"))

• Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway

• Stile: 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks

• Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template (see template)

CERTIFICATION COMPLIANCE

ANSI/BHMA

Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.

Note: LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA

Meets A117.1 Accessibility Code.

Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL-cUL

UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure

Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

California

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face

Tornado and Hurricane Codes

See below

WINDSTORM CERTIFICATIONS

SARGENT Manufacturing’s products meet building codes that require hurricane, windstorm and FEMA certifications, including some of the most stringent building codes as specified in the Florida Building Code, Miami Dade Code and the International Building Code. Listed below are certifications and standards met by the 7800/8200 lock.

Florida Building Code: FL2998

UL Certification Directory: ZHEM.R21744 – Latching Hardware

ANSI/SDI A250.13

“Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies”

ASTM E330

“Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference”

ASTM E1886

“Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996 (2009)

“Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems Impacted by Windborne Debris in Hurricanes”

(TAS) 201

“Impact Test Procedures”*

(TAS) 202

“Criteria for Testing Impact and Non-Impact Resistant Building Envelope Components Using Uniform Static Air Pressure”

(TAS) 203

“Criteria for Testing Products Subject to Cyclic Wind Pressure Loading”*

* Any undated reference to a code or standard appearing in this catalog shall be interpreted as referring to the latest edition of that code or standard.

UL Certification Directory: ZHLL.R21744 – Products for Use in Windstorm-rated Assemblies

Certifications to meet assembly requirements are done in conjunction with doors from ASSA ABLOY Group companies CECO DOOR and CURRIES.

ASTM E330

“Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference”

ANSI/ASTM E1886

“Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996

“Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems Impacted by Windborne Debris in Hurricanes”
