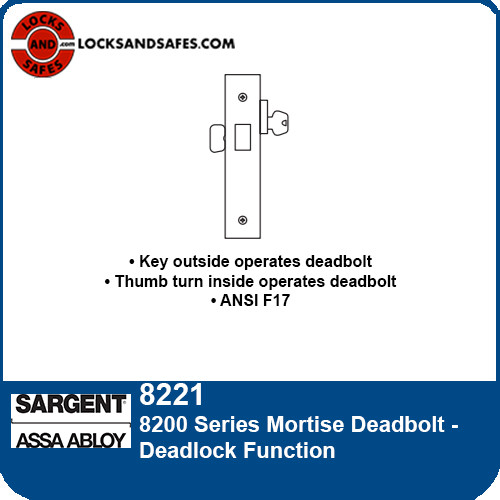

Sargent 8221 Deadlock Function Mortise Deadbolt | Sarget 8200 Series Mortise Deadbolt
Function
Deadlock
• Key outside operates deadbolt
• Thumb turn inside operates deadbolt
• ANSI F17
Technical Details
For Doors
Door thickness 1-3/4" (44mm) standard (For thicker doors, consult us)
Backset
2-3/4" only
Strike
4-7/8" (124mm), ANSI Standard
Deadbolt
One piece hardened stainless steel deadbolt with 1" (25mm) throw
Cylinder
Brass, 6 pin. 2 keys per lock. Also available with the SARGENT Signature and Keso and Keso F1 security systems
NOTE: See 8200 Mortise Lock catalog for details on cylinder requirements.
Masterkeying
Can be masterkeyed. Construction key systems available
Case
12 gauge heavy duty wrought steel, zinc dichromate plated
Outside Front Plate
Brass, bronze and stainless steel. 8" (203mm) x 1-1/4" (32mm), ANSI Standard A156.115.
Adjustable at any angle from flat to beveled 1/8" (3mm) in 2" (51mm)
Hand
Non-handed
Template
