Sargent 8247 Front Door or Apartment Corridor Function (ANSI F08/F10) Mortise Lock Body Only

Sargent 8247 Front Door or Apartment Corridor Function (ANSI F08/F10) Mortise Lock Body Only

The patented SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability. These locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: strong, durable, flexible, innovative and secure.

FUNCTION

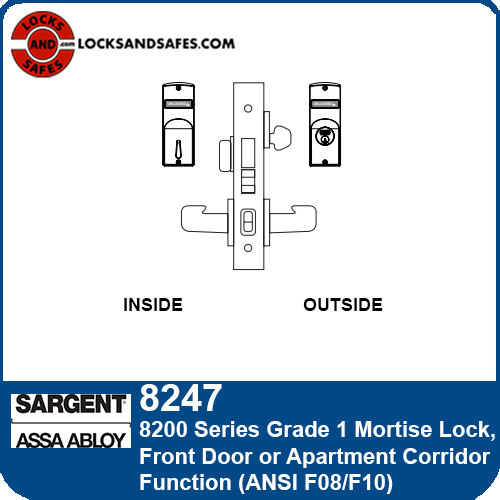

Front Door or Apartment Corridor Door (ANSI F08/F10)

    INSIDE                OUTSIDE

• Key and thumbturn both retract & project deadbolt

• Trim outside is locked by toggle or projecting deadbolt

• Trim outside is unlocked by toggle only

• Key retracts both latchbolt and deadbolt, trim outside remains locked • Trim inside retracts latchbolt only, deadbolt is retracted manually & trim outside remains locked

NOTE: INDICATOR SHOWS DEADBOLT POSITION ONLY

CAUTION: Not recommended for use on any door used for Life Safety egress
