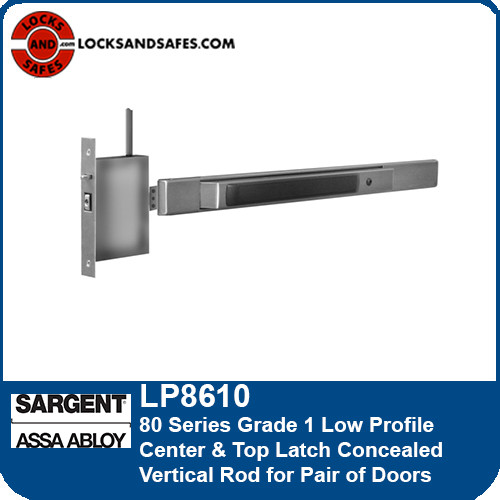

Sargent LP8610 | 80 Series Grade 1 Low Profile Center & Top Latch Concealed Vertical Rod for Pair Of Doors Projecting Bolt (For Active Door)

Sargent LP8610 | 80 Series Grade 1 Low Profile Center & Top Latch Concealed Vertical Rod for Pair Of Doors Projecting Bolt

Features

• The security of a stainless steel center bolt, two concealed top bolts and a low profile device for pairs of doors without bottom rod issues
• Devices are ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) listed
• 1-1/2" total projection from face of door
• Center and top latching
• No visible active chassis
• Center latchbolt adjustable for up to 3/8" (9mm) door gap
• Both doors are active. Either door can be opened or closed without affecting the other door. Open back strikes are not required
• Top case latchbolt projection adjustable through top case
• Tripping potential removed - no bottom strike
• Concealed rods for security and aesthetics

Specifications

Door Type
Factory prepped metal doors for LP & LR devices

Door Thickness
1-3/4" (44mm) doors only with 2-3/4" (70mm) backset

Stile
4-1/2" (114mm) minimum stile

Rail sizes as determined by door width
Rails are available in 3 sizes, use door width to determine size needed.
• L Rail for 36" door width no cutting required
• M Rail for 42" to 44" door width no cutting required
• N Rail - 46" to 48" door width no cutting required

Strike
650 Top Strike (Panic and Fire Rated)

Dogging Feature
Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting Fasteners
Supplied standard with machine screws

Top & Center Bolts
Stainless steel

Device Centerline from Finished Floor
41" (1041mm) for Standard Applications

Door/Opening Height
Must be specified - 120" (3048mm) Max Door Opening

Center Case Dimensions
8-3/8" (213mm) x 2-5/8" (67mm)

Projection
Pushbar Neutral – 1-1/2" (38mm)
Pushbar Depressed – 5/8" (15mm)
