ABH
ABH 6600 Series Mortise Lock Hospital Latch
Availability:
7-21 Days
Shipping:
Calculated at Checkout
$478.17
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
ABH 6600 Options (Please call us for these addons):
- "SEC" Fasteners
- "THICK" Special Door Thickness
- "L" Lead-Lined
- "AM" Anti-Microbial Coating
- "EL" Electronically Locked
- "EU" Electronically Unlocked
- "RX" Request to Exit
- "H" Hip Paddle
- "EX" Extended Handle
- "X" Slip-On Handle Extension
- "PL" Entrance Only
- "PS" Exit Only
- "AB" Asylum Trim on Both Sides - 6200, 6600 & 6700 models (Specify B or C Knob)
- 'PLA" Push/Pull Trim on pull side and Asylum Knob on push side (Specify B or C Knob) - 6600 or 6700
- "PSA" Push/Pull Trim on push side and Asylum Knob on pull side (Specify B or C Knob) - 6600 or 6700
- "J" Junior Cover
- "RC" Round Cover
- "P" Engraved Handles "PUSH" or "PULL"
ABH 6600 Features:
- Mortise lock body provided - specify function
- Mortise lock body only available in 2-3/4" backset
- 4-7/8" ASA strike supplied standard
- Mortise lock cylinder and cam not provided
- Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
- 6 Pin Cylinder = 1-1/8" long
- 7 Pin Cylinder = 1-1/4" long
- 1-3/4" standard door thickness (specify if greater than 1-3/4")
- Meets ADA requirements
- All mounting hardware goes through mortise lock body prep - no additional prep required
- One continuous spring provides a smoother operation and an extended life for the unit
- Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
- Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- For Mortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
- Handles can be mounted up or down by simply rotating trim 180°
- UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 7 lbs
- Patent# 5,730,478 & #6,196,599

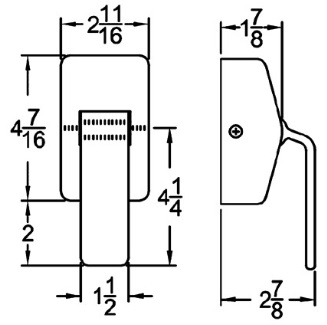

ABH 6600 Dimensions
Hospital Push Pull Latches Cross Reference Chart
| Type | ABH (Click Link Below To View Product) | GJ | ASSA Abloy | Trimco | ||
|---|---|---|---|---|---|---|
| Rockwood | Sargent | Corbin Russwin | ||||
| Cylindrical Latch | 6000 | HL6 | 596 | - | - | - |
| 6800 | - | - | 114 115 |
- | 1562 | |
| 6800Q | - | - | - | - | - | |
| LR6000 | - | - | HPU15 ALP | HP3010K HPSK | - | |
| LR6000Q | - | - | - | - | - | |
| 6000PL 6000PS |
HL6-EO | - | - | - | - | |
| 6800PL 6800PS |
- | - | - | - | 1562AE | |
| 6100 | - | - | - | - | - | |
| 6200 | - | - | - | - | - | |
| 6400 | PL7 | - | - | - | 1652L | |
| 6500 | PL8 | - | - | - | - | |
| 6830 | - | - | - | - | 1591 | |
| Trim with Mortise Lock Body | 6600 | HL6-9000 | - | 7800 PT | - | 1562 M55 1562 Q55 |
| LR6600 | - | - | 8200 ALP | ML2000 x HPSK | - | |
| Trim Only For Other Manufacturers' Mortise Lock Body | 6700 | - | - | - | - | - |
| LR6700 | - | - | - | - | - | |
Additional Information
- Option:Choose Handing (What is it? Click link here to see our Door Handing Guide):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
