ABH
ABH 6800 Low Profile Cylindrical Hospital Latch
Availability:
7-21 Days
Shipping:
Calculated at Checkout
$167.24
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
ABH 6800 Options (Please call us for these addons):
- "SEC" Fasteners
- "THICK" Special Door Thickness
- "L" Lead-Lined
- "AM" Anti-Microbial Coating
- "CN" Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
- "RX" Request to Exit
- "H" Hip Paddle
- "EX" Extended Handle
- "X" Slip-On Handle Extension
- "PL" Entrance Only
- "PS" Exit Only
- "M" Security Plate for Exit Only to Prevent Latch Tampering
- "FM" Flush Mount Asylum Trim (Cylindrical Latch only)
- "J" Junior Cover
- "RC" Round Cover
- "P" Engraved Handles "PUSH" or "PULL"
ABH 6800 Features:
- Cylindrical latch application - passage function
- 1-3/4" standard door thickness (specify if different)
- Meets ADA requirements
- Trim is mounted using four thru-bolts for maximum stability
- Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
- Linear acting cam which provides for a smoother operating unit
- One continuous spring provides a smoother operation and an extended life for the unit
- UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 4.75 lbs
- Patent# 7,258,374 & Addition Patents Pending

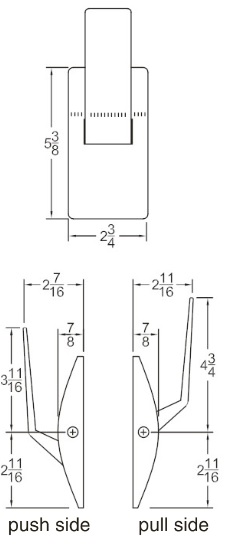

ABH 6800 Dimensions
Hospital Push Pull Latches Cross Reference Chart
| Type | ABH (Click Link Below To View Product) | GJ | ASSA Abloy | Trimco | ||
|---|---|---|---|---|---|---|
| Rockwood | Sargent | Corbin Russwin | ||||
| Cylindrical Latch | 6000 | HL6 | 596 | - | - | - |
| 6800 | - | - | 114 115 |
- | 1562 | |
| 6800Q | - | - | - | - | - | |
| LR6000 | - | - | HPU15 ALP | HP3010K HPSK | - | |
| LR6000Q | - | - | - | - | - | |
| 6000PL 6000PS |
HL6-EO | - | - | - | - | |
| 6800PL 6800PS |
- | - | - | - | 1562AE | |
| 6100 | - | - | - | - | - | |
| 6200 | - | - | - | - | - | |
| 6400 | PL7 | - | - | - | 1652L | |
| 6500 | PL8 | - | - | - | - | |
| 6830 | - | - | - | - | 1591 | |
| Trim with Mortise Lock Body | 6600 | HL6-9000 | - | 7800 PT | - | 1562 M55 1562 Q55 |
| LR6600 | - | - | 8200 ALP | ML2000 x HPSK | - | |
| Trim Only For Other Manufacturers' Mortise Lock Body | 6700 | - | - | - | - | - |
| LR6700 | - | - | - | - | - | |
Additional Information
- Option:Choose Backset (What is a Backset? Click here to read our blog explaining Backset):
- https://blog.locksandsafes.com/2021/02/02/what-is-a-backset/
