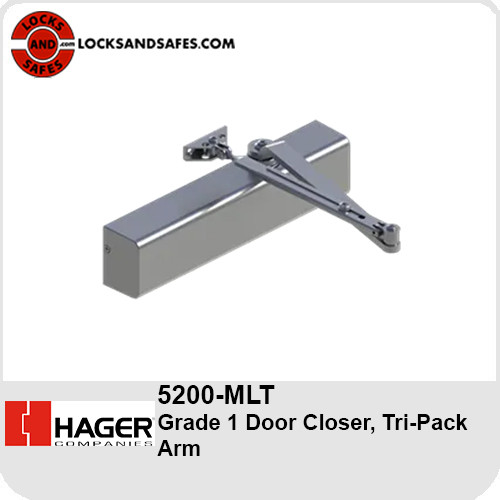

Hager 5200-MLT Multi Mount Door Closer, Tri-Pack Arm | Hager 5200 Series Grade 1 Door Closer
Product Description
Grade 1 heavy duty surface door closer adjustable sizes 1-6
Ideal for schools, hospitals, and other high-use environments
Arm
Tri-Pack - Regular, parallel arm, and top jamb mount - Standard 15% power adjustment in standard arm for regular and top jamb mount
Certifications
BHMA Certified ANSI A156.4, adjustable sizes 1-6
ADA Compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for up to 3 hours
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated
5200 Door Closer EPD
Cover
Full plastic cover - Standard
Slim line plastic cover - Optional
Full size plated metal cover - Optional
Door Thickness
1-3/4" (44 mm)- standard
1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Fasteners
Self-reaming, self-tapping wood and machine screws
Sex nuts and bolts
Handing
Non-handed
Maximum Door Weight
250 lbs.
Notes
To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
Springs
One piece seamless steel spring tube
Double heat-treated, steel-tempered springs
Precision-machined, heat-treated steel piston
Valves
Adjustable backcheck, sweep, and latching valves- standard
Delayed action valve - optional
All valves are staked
Template
