Description

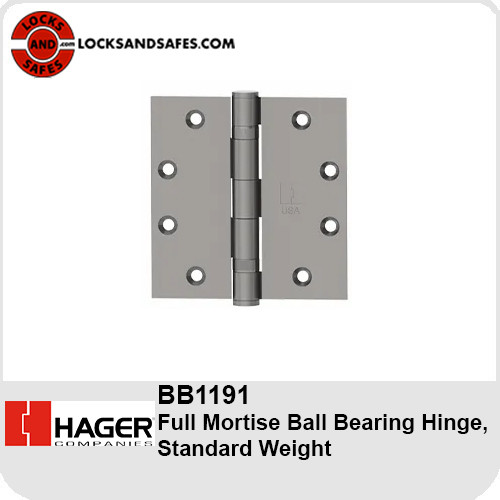

Hager BB1191 Full Mortise Commercial Hinges | Standard Weight Ball Bearing Hinges
Product Description
Full Mortise, Ball Bearing, Standard Weight
Applications
For use on medium weight doors or doors requiring medium frequency service
Certifications
ANSI A2112 (Brass)
ANSI A5112 (Stainless Steel)
UL Listed
Features
Non-rising removable pin with button tip and plug. Two ball bearings.
1/16" swage standard.
Fire Rating
Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles
5
Material
Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Options
NRP (Non-removable pin)
Stamped with UL logo when ordered for export
1/4" radius
0 swage
Sizing Chart
