Sargent 10XG04 BHW Storeroom/Closet Function (ANSI F86) | Sargent 10X BHW Grade 1 Behavioral Health Trim

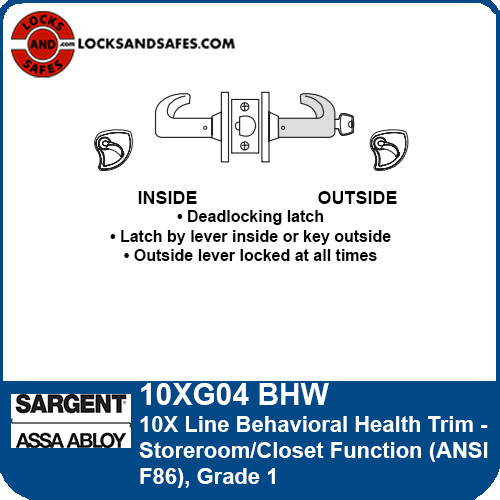

Function
Storeroom/Closet (ANSI F86)
• Deadlocking latch
• Latchbolt by lever inside or key outside
• Outside lever locked at all times
Technical Details
Door Prep
ANSI/SDI A250.14 modified. Refer to template 4753
Door Thickness
1-3/4" (44mm) thick door adjusts to 2" (51mm)
Minimum Stile
8-1/2" (216mm)
Handing
Handed - must be specified on order
Backset
2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)
3-3/4" (95mm) backset w/ 1-1/8" (29mm) front (specify 23- Option)
5" (127mm) backset w/ 1-1/8" (29mm) front (specify 25- Option)
Latchbolt
Stainless steel, 1/2" (13mm) throw
Front
Wrought brass and stainless steel
2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel
Strike
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard
800 curved lip strike (specify 29- Option)
Wrought box strike available (specify WBS- Option)
Cylinder
Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random.
Keys
Two nickel silver change keys per lock standard
Masterkeying
Can be master keyed or grand master keyed
Construction key systems available
Fasteners
6-Lobe security head Torx® standard for exposed fasteners
Finish
32D
Template
