Function

Storeroom/Closet (ANSI F86)

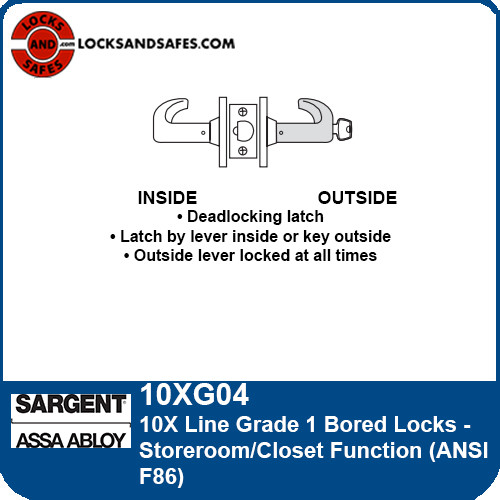

• Deadlocking latch

• Latchbolt by lever inside or key outside

• Outside lever locked at all times

Technical Details

Door Prep
ANSI/SDI A250.14

Door Thickness
1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
1-3/8" (35mm) thick door, specify 1- Option for Adapter plates
Over 2" (51mm) up to 2-1/4" (57mm), specify 31- Option
Over 2-1/4" (57mm) up to 6" (152mm) available by special application, contact Technical Product Support

Minimum Stile
4-1/2" (114mm)

Handing
Non-handed

Backset
2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)
2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)
3-3/4" (95mm) backset w/ 1-1/8" (29mm) front (specify 23- Option)
5" (127mm) backset w/ 1-1/8" (29mm) front (specify 25- Option)

Latchbolt
Stainless steel, 1/2" (13mm) throw
Optional: Brass 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify 41- Option)

Front
Wrought brass and stainless steel
2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel
2-1/4" x 1" (57mm x 25mm) (included with 20- Option)

Strike
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard
800 curved lip strike (specify 29- Option)
Wrought box strike available (specify WBS- Option)

Cylinder
Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random.

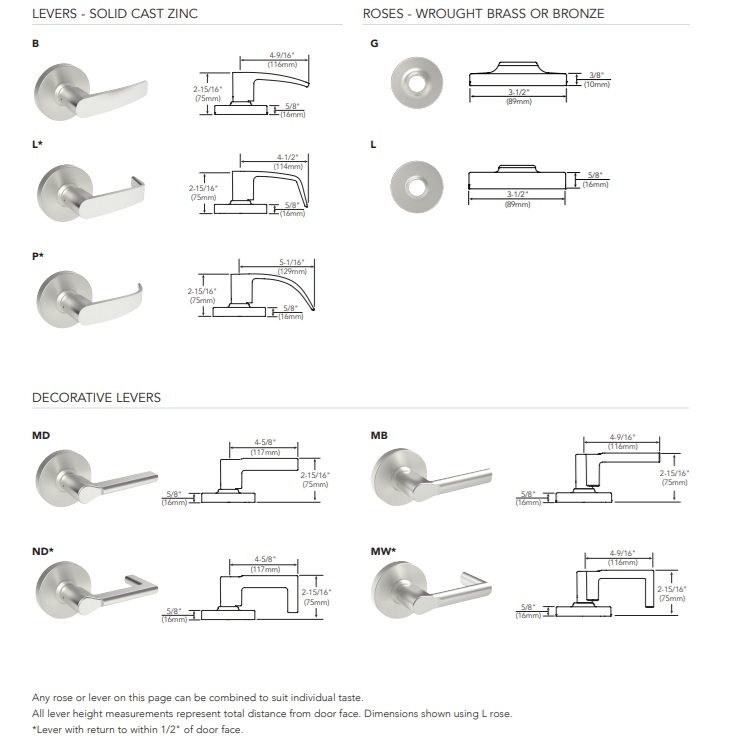

Sargent 10X Line Lever and Rose Options
