Sargent 114 Push/Pull Trim | Sargent Tubular Locks

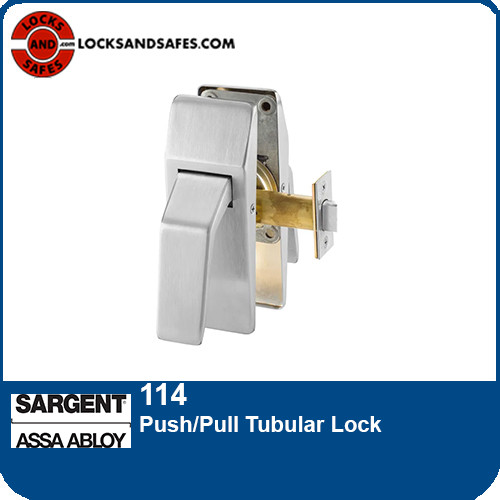

114 push and pull paddles are mounted in the down position as shown and are available with “PUSH’’ and “PULL’’ stamped into the top of the escutcheon.
SPECIFICATION
For Doors
1-3/4" (44mm) to 2-1/4" (57mm)
Backset
5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-115) and 7" (177mm) backset (specify as 26-115) available on order
Strike
4-7/8" (124mm) ANSI/SDI A250.14 ANSI curved lip strike # 808*
Bolt
Brass, 1/2" (13mm) throw
Hand
Specify hand (RHR, RH, LHR or LH)
114
Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm)
Escutcheons
Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm)
UL Listed
UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List
Backsets
24- 2-3/4" (70mm) backset
26- 7" (177mm) backset
