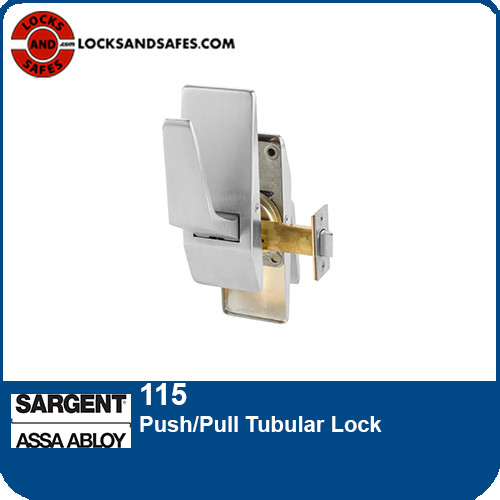

115 push are mounted in the up position only and pull paddles are mounted in the down position only. Paddles are available with "PUSH" and "PULL" stamped into the top of the escutcheon as shown.

SPECIFICATION

For Doors
1-3/4" (44mm) to 2-1/4" (57mm)

Backset
5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-115) and 7" (177mm) backset (specify as 26-115) available on order

Strike
4-7/8" (124mm) ANSI/SDI A250.14 ANSI curved lip strike # 808*

Bolt
Brass, 1/2" (13mm) throw

Hand
Specify hand (RHR, RH, LHR or LH)

115 Push Paddle - mounted up position only. Cast; 1-5/8" (41mm) x 4-1/2" (114mm); Projection from door 2-1/2" (64mm)

115 Pull Paddle - mounted down position only. Cast; 1-5/8" x 4-3/4"; Projection from door 2-15/16"

Escutcheons
Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm)

UL Listed
UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List

Backsets
24- 2-3/4" (70mm) backset
26- 7" (177mm) backset

Template
