Sargent 8XG05 Entrance/Office Function (ANSI F109) | Sargent 8X Line Grade 1 Bored Lock with Knob
Function
Entrance/Office (ANSI F109)
• Latch by either knob unless outside knob is locked by turn button in inside knob
• Turn button released by key outside or knob inside
• Turn button must be released manually
• Key retracts latch when outside knob is locked
• Deadlocking Latch
Technical Details
Door Thickness
1-3/8" (35mm) – 2" (51mm). Factory preset to 1-3/4" (44mm)
Backsets
2-3/4" (70mm) standard
Front
Heavy wrought brass or stainless steel
2-1/4" (57mm) x 1-1/8" (29mm)
Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel
Strike
Heavy wrought brass or stainless steel
808 ANSI curved lip strike (standard)
800 curved lip strike optional (specify 29- Option)
Hand
Universal, not handed
Knob
Heavy wrought brass or stainless steel
Roses
Heavy wrought brass or stainless steel
Latch
Stainless steel bolt 7/8" (22mm) dia. x 1/2" (13mm) throw
Cylinder
Brass, 6 pin, LA keyway standard
Keys
Two, nickel silver
Masterkeying
Can be masterkeyed or grand masterkeyed
Construction key systems available
Door Prep
ANSI/SDI A250.14
Minimum Stile
4-1/2" (114mm) with 2-3/4" backset

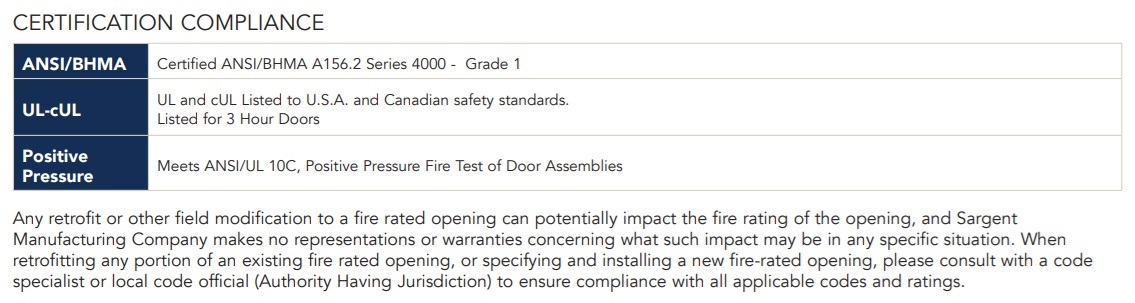

Sargent 8X Line Certifications

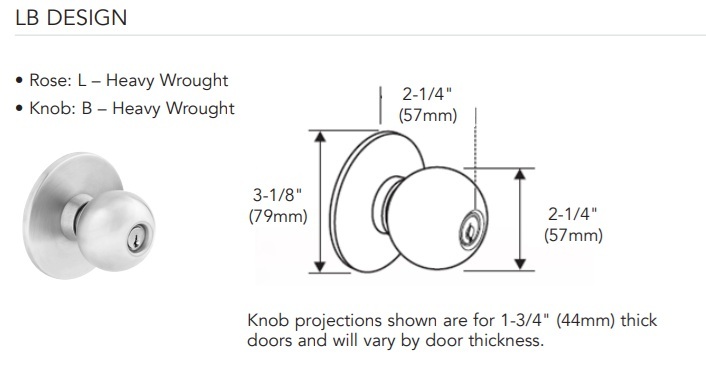

Sargent 8X Line Knob and Rose Options
