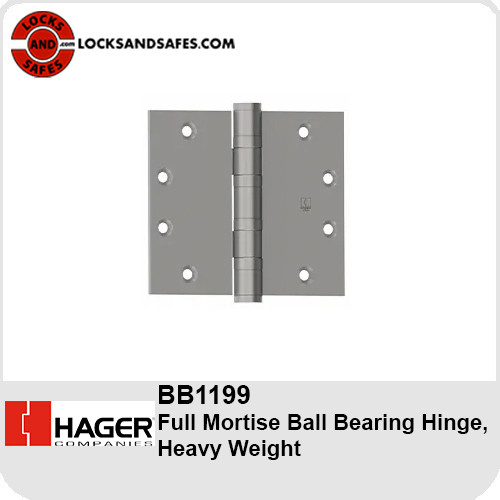

Hager BB1199 Full Mortise Commercial Hinges | Heavy Weight Ball Bearing Hinges
Product Description
Full Mortise, Ball Bearing, Heavy Weight
Applications
For use on heavy weight doors and doors requiring high frequency service
Certifications
ANSI A2111 (Brass)
ANSI A5111 (Stainless Steel)
UL Listed
Electric Modifications
EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire
with Monitoring), Quick Connect
Features
Four ball bearings. Non-rising removable pin with tip and plug.
1/16" swage standard
Fire Rating
Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles
5
Material
Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Notes
Furnished with fastener hole locations that conform to standards approved by ANSI A156.7
Options
NRP (Non-removable pin)
Stamped with UL logo when ordered for export
1/4" radius
0 swage
