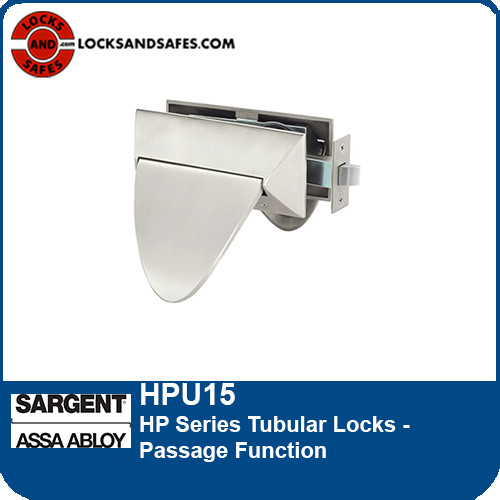

Sargent HPU15 Passage Function | Sargent HP Series Tubular Lock with Push/Pull ALP Trim

Sargent HPU15 Passage Function | Sargent HP Series Tubular Lock with Push/Pull ALP Trim

The HP Series Tubular Lock with ALP push/pull trim provides an aesthetically- pleasing alternative to standard push/pull products. Ease of operation allows its use in many environments, including healthcare and education. The paddle shape and location create a comfortable target for door activation without using hands.

FUNCTION

PASSAGE

- Both paddles retract latch

- Ideal for patient rooms and closets

SPECIFICATION

Door Thickness
1-3/4" (44mm) to 1-7/8" (47mm) standard; for doors greater than 1-7/8" (47mm) to 2-1/4" (57mm), specify 31- and door thickness (For thicker doors, consult us)

Backset
5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-HP) and 7" (177mm) backset (specify as 26-HP) available on order

Strike
4-7/8" (124mm) ANSI/SDI A250 14 ANSI curved lip strike # 808

Bolt
Brass, 1/2" (13mm) throw

Hand
Specify hand (RHR, RH, LHR or LH)

Escutcheons
Cast stainless steel

UL Listed
UL Listed for use on fire doors (4x10 opening)

Finish Protection
CPC- Clear Powder Coat

Template
