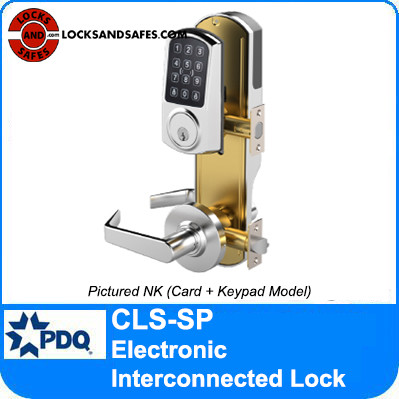

PDQ CLS-SP Interconnected Lock
HANDING
Unsure of how to determine handing? See our Door Handing guide for more information.
FEATURES
• Built from PDQ’s CL Series Interconnected Lock
• Designed for quick installation
• 4 AA Alkaline batteries last up to 2 years or 5V DC
• Able to schedule specific access windows
• Log and track access events and status
• Monitors and protects openings with door obstruction alerts
• Battery status and low battery alerts
• Indoor use only
SPECIFICIATIONS
DOOR THICKNESS
• 1-3/8” to 1-3/4”
BACKSET
• 2-3/4” (Adjustable)
CREDENTIALS
• RFID • Smartphone • PIN • Mechanical Key
KEYWAYS
• Conventional • SFIC • High Security • UL437
CREDENTIAL COMPATIBILITIES
• Prox (Optional) • MIFARE DESFire EV1/EV2/EV3/Light
• MIFARE Ultralight EV1/AES • MIFARE Classic
COMMUNICATION
• BLE 4.2 • BLE 5.2
ENCRYPTION
• AES 256
BATTERIES REQUIRED
• 4 AA Alkaline Batteries
OPERATING TEMPERATURES
• -20C to 65C
• 0-95% Humidity (Non-Condensing)
CERTIFICATIONS & COMPLIANCES
• FCC Part 15 • UL/cUL 10C 20-Minutes
• Complies with ADA (Americans with Disabilities Act)
MODES
• Standalone • Online
