Securitron FMK Flex-Mount Gate Lock Bracket Kit

Securitron FMK Flex-Mount Gate Lock Bracket Kit

The FMK Flex-Mount Bracket System is an intuitive set of mounting brackets designed exclusively for use with the M62FG Magnalock and the GL1 Gate Lock.

Pre-formed post channels and plates of varying lengths make it easy for you to assemble a professional looking, highsecurity gate lock mounting platform in minutes, without special tools

FEATURES

• Permits electronics to be mounted on fence posts or gate posts

• Brackets are reversible

• Bracket kits include brackets, mounting hardware and post shims

• Post brackets are pre-drilled

• Zinc-plated steel provides durability and long life

• Bolt on or weld for installation

• Compatible with maximum 3" [76.2mm] round post with minimum pole separation of 1" [25.4mm]

• Use with post shim brackets for smaller post sizes

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

NOTES

• M62FG and GL1 can be direct mounted on square posts

• To use FMK-SL with M62FG-SASM, post separation should be 1" to 2-1/4" [25.4mm – 57.15mm]

• To use FMK-SW with M62FG or GL1, post separation should be 1" to 2-3/4" [25.4mm – 69.85mm]

• To use FMK-SL with M62FG or GL1, post separation should be 1" to 3-3/4" [25.4mm – 95.25mm]

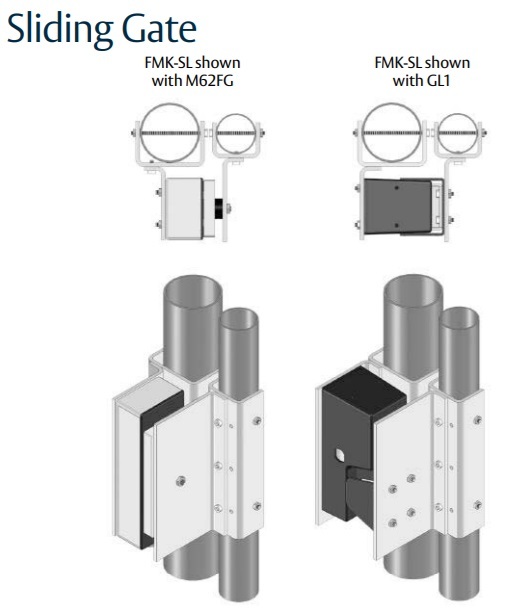

Securitron FMK-SL

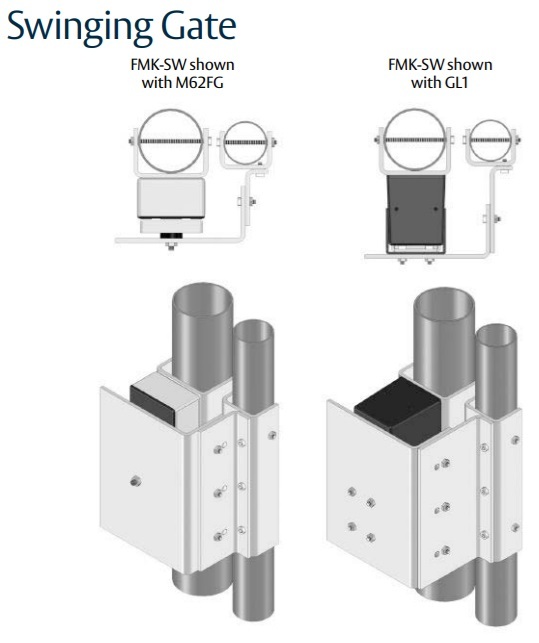

Securitron FMK-SW
