Securitron GL1 Electromechanical Gate Lock

Securitron GL1 Electromechanical Gate Lock

The GL1 provides 2,000 lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding vehicle, pedestrian or stock gate access control.

FEATURES

• 2,000 lbs holding force

• Operates under preload up to 100 lbs

• Automatic dual-voltage— no field adjustment required

• Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)

• Self-aligning receiver (+/- 1/2" [12.7mm] horizontally) helps compensate for gate misalignment and sag

• Tamper resistant cast housing

• Optional latch status monitor

• Surface mount

• SecuriCare three-year, no-fault, no questions asked warranty

Specifications

Certifications

• UL 294 Listed

Electrical

• 12 Volts Initial (Peak): (~1.0 sec.) at 870 mA — Reduced: 290 mA

• 24 Volts Initial (Peak): (~1.0 sec.) at 720 mA — Reduced: 170 mA

Holding Force

• 2,000 lbs [907kg]

Operating Temperature

• -58˚ to 167˚F [-50˚ to 75˚C]

• Indoor or outdoor use

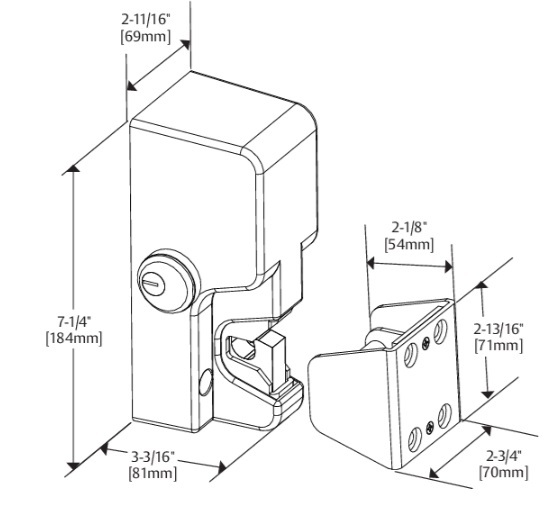

DIMENSIONS

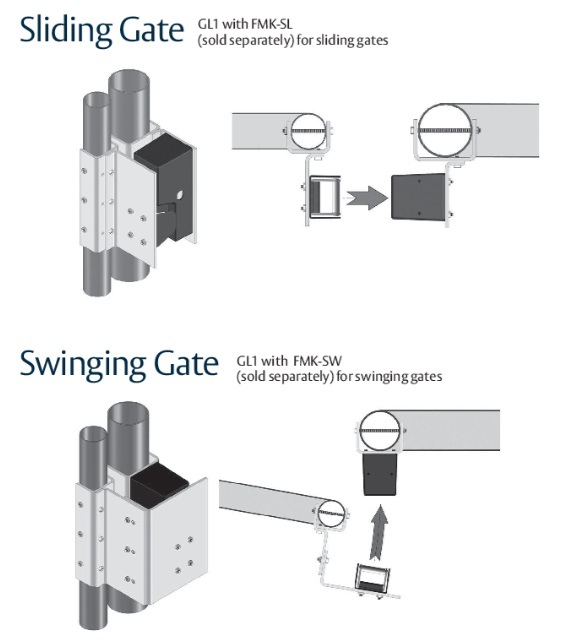

Securitron GL1 Installation
