Single Cylinder Deadbolts Mortise Locks | PDQ MR131 | J Sectional Trim

$170.08 - $172.03
(No reviews yet) Write a Review
Weight:
8.00 LBS
Width x Height x Depth:
12.00 (in)

 x

8.00 (in)

 x

8.00 (in)

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Shipping:
Calculated at Checkout
Keyway:
Schlage "C" keyway is standard. Other keyways are available upon request. Also available in Small Format/Large Format Interchangeable Core.

Get all your locks Keyed | PDQ MR131 Mortise Locks Single Cylinder Deadbolt PDQ Door Hardware Price List | Buy PDQ Door Hardware | Buy PDQ Mortise Locks

HANDING

Unsure of how to determine handing? See our handing chart

PDQ Mortise Locks Handing | Buy PDQ Door Hardware

PDQ MR131 - LOCK FUNCTION

FUNCTION

FUNCTION NUMBER

OUTSIDE | INSIDE

DESCRIPTION

ANSI NUMBER

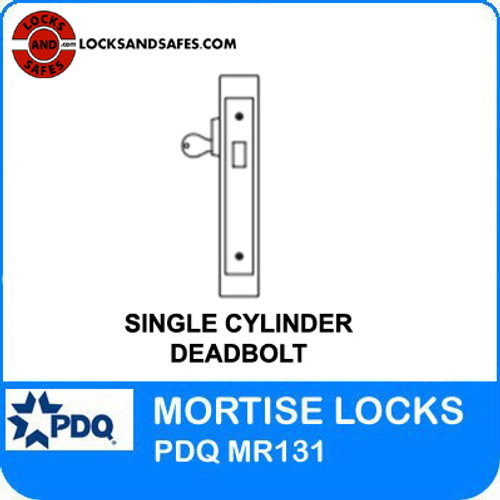

Single Cylinder Deadbolt

PDQ MR131

PDQ MR131 Single Cylinder Deadbolt Mortise Locks | Arrow BM40 Mortise Deadbolt | PDQ MR131 | Mortise Deadbolt Lock

• Key outside extends / retracts deadbolt

F18



CROSS REFERENCE CHART

ANSI#

PDQ FUNCTION

SCHLAGE

FALCON

YALE

SARGENT

CORBIN

DORMA

MARKS

ARROW

BEST

F18

PDQ MR131

Schlage L9464

Falcon MA921

Yale AU8814

Sargent 8220

Corbin NML2011

N/A

Marks 5S

Arrow BM40

Best 45HYB

Single Cylinder Deadbolts Mortise Locks | PDQ MR131 | J Sectional Trim

PDQ MR Series Mortise Lock - Grade 1 - J Series Sectional Trim

Buy PDQ MR131 Mortise Lock, Single Cylinder Deadbolt, ideal for commercial use. These rugged, heavy duty locks are easy to install. They are perfect for use in situations where an extra measure of protection is required against break-ins. Their engineering makes them long lasting, thereby reducing maintenance costs which arise due to breakdowns. The features and performance makes the MR131 an attractive Mortise deadbolt lock and an attractive alternative to Arrow BM40 Mortise Locks.

Features

1. Made from heavy duty, high strength materials, from which the lock derives its strength.

2. ANSI/BHMA Grade 1 performance certified lock.

3. Assembled in America, meets requirements of Buy American Act.

4. Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings.

5. Available in a beautiful, top quality, Satin Chromium finish, with an antimicrobial coating applied on it, to inhibit the growth of microbes.

6. The lock comes with a lifetime limited warranty.

The MR131 Mortise Lock is manufactured by PDQ Industries, based in Pennsylvania, USA, a reputed door hardware manufacturer, and a brand whose products are preferred by locksmiths. The highlight of PDQ's products are their quality and durability.

Buy the MR131 Mortise Deadbolt Lock in place of Arrow BM40 Mortise Locks, and get a high quality, grade 1 performance lock, designed for security at affordable prices.

SPECIFICATIONS

FOR DOORS
1-3/4" standard, 2" and 2-1/4" special order from factory.
BACKSET
2-3/4"
CASE
13-gauge cold rolled steel mechanism
Dichromated for corrosion resistance
ARMOR FRONT
Beveled 1/8" on 2"
625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material
STRIKE
Handed Curved Lip Strike
625(US26) & 630 (US32D) use stainless steel as base material,all other finishes use stainless steel or brass as base material
LATCHBOLT
3/4" Throw
Investment Cast Stainless Steel
Anti-friction
DEADBOLT
1" Throw
Investment Cast Stainless Steel
HAND
Most functions field reversible. Specify handing for strikes, consult factory for details
KEYS
Two (2) per Lock
KEYWAYS
SCC standard (Schlage C Compatible)
Also available in keyways of other manufacturers
INTERCHANGEABLE CORE
6 or 7-pin
Compatible with Best, Falcon & Arrow
Large Format IC Cores compatible with Schlage.
CYLINDER
6 or 7-pin BrassMortise Cylinder
KEYING
Options:MK, CMK or GMK
Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)Can be keyed into existing master key systems
FINISHES
F Series Trim: 626 (US26D)
J and JW Series Trim: 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 629 (US32) , 630 (US32D)
Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series
CERTIFICATIONS, LISTINGS, COMPLIANCES
UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"
Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1
WindstormRated - Florida Building Code HVHZ (High Velocity Hurricane Zone) listed
Contact PDQ Technical Service for more information. (functions with deadbolts only)
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
JW Wide Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008)
WARRANTY
Lifetime Limited Warranty
COUNTRY OF ORIGIN
Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.


PDQ PRICE LIST


ARCHITECTURAL SPEC SHEET

Click here to download Architectural Spec Sheet
