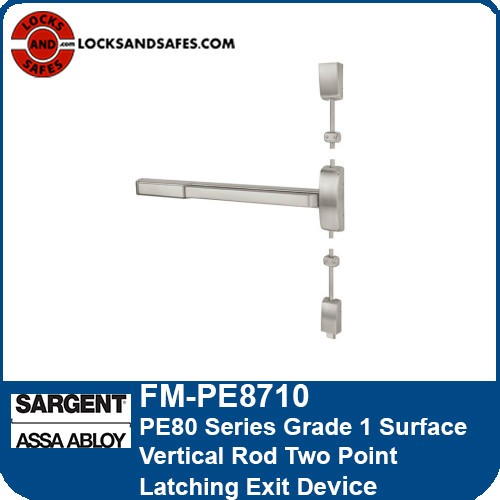

Sargent FM-PE8710 | PE80 Series Grade 1 Surface Vertical Rod Two Point Latching Exit Device
SPECIFICATIONS
Chassis Cover
Stainless steel, brass or bronze
Chassis
Nonferrous alloy
Door Type
Ceco Door and CURRIES StormPro® Series doors
Door Configuration
Single or double doors
Door/Opening Height
Must be specified
• 96" maximum door opening
Door Thickness
1-3/4" only
Stile
• 4-1/2" (114mm) minimum - narrow & wide trim
• 3-1/2" (44mm) minimum - without trim
Rails
Stainless steel, brass or bronze
Rail Size
• Standard - F, J, G
• F Rail for 32.5" to 36" door widths, No cutting required for 36" door
• J Rail for 36.5" to 42" door widths, No cutting required for 42" door
• G Rail for 42.5" to 48" door widths, No cutting required for 48" door
• Custom sizes available
Projection
2.88"
Latching
Top latch: dropdown bolt
Bottom latch: dropdown
End Cap
• Flush end cap standard
• Overlapping end cap optional - Specify OL
Rods
• 1/2" brass, bronze or stainless steel
• Adjusted at center case
Device Centerline
• 39-5/8" standard applications
Dogging Feature
• Hex key dogging standard on non fire-rated mechanical devices
• Specify LD for less dogging
Indicator
Specify 18- for passive dogging indicator
Strikes
• 659 Top Strike
• 653 Bottom Strike
• Optional Strike: 655 Fire-rated Bottom Strike
Mounting Fasteners
• Machine screws provided
• Available with thrubolts (TB-) please contact us
Frames
Ceco Door and CURRIES StormPro® Series Door Assemblies
Hinges
• McKinney SP3386/SP3786 StormPro® Tornado Resistant Butt Hinges
• McKinney MCK-HG305 Continuous Hinges
• Markar HG305 Continuous Hinges
Shim Kit
• P569-1 Shim Kit furnished standard
• Specify P569-2 for use with overlapping end caps (OL-) please contact us
- Option:Choose Handing (What is handing? Click link here to know more):
