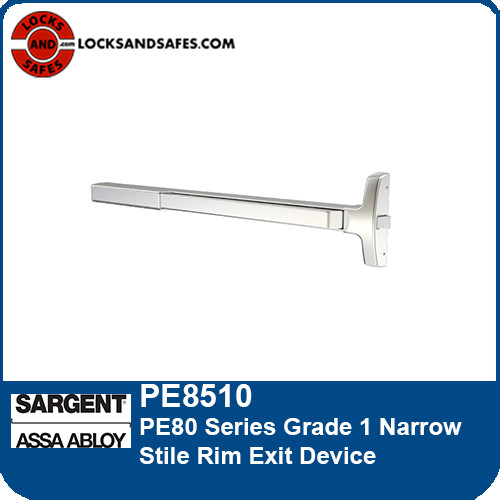

Sargent PE8510 | PE80 Series Grade 1 Narrow Stile Rim Exit Device

Sargent PE8510 | PE80 Series Grade 1 Narrow Stile Rim Exit Device

SPECIFICATIONS

Chassis Cover
Stainless steel, brass or bronze

Chassis
Ferrous alloy

Door Type
Wood, metal, aluminum (consult us for other door types)

Door Configuration
Single door or double door with mullion

Door Thickness
• 1-3/4" minimum thickness.
• For doors over 1-3/4" to 5" thick, (please contact us)

Stile
Narrow Trim - 2" minimum stile
Wide Trim - 3" minimum stile

Rails
Stainless steel, brass or bronze

Rail Size
Standard - E, F, J, G

• E Rail for 26" to 32" door widths, No cutting required for 32" door

• F Rail for 32.5" to 36" door widths, No cutting required for 36" door

• J Rail for 36.5" to 42" door widths, No cutting required for 42" door

• G Rail for 42.5" to 48" door widths, No cutting required for 48" door

Custom sizes available (please contact us)

Projection
2.88"

Latchbolt
Stainless steel, 3/4" throw

End Cap
• Flush end cap standard
• Overlapping end cap optional - Specify OL

Device centerline
• 39-5/8" for standard applications
• 38" for elementary schools

Dogging Feature
• Hex key dogging standard on non fire-rated mechanical devices
• Specify 16- for cylinder dogging (#41 cylinder supplied)
• Specify LD for less dogging

Indicator
Specify 18- for passive dogging indicator

Strikes
• 656 & 657 Strike - Standard
• 649 Strike - Standard for fire-rated devices
• 658 Strike - Standard with 650A mullions
• Optional strikes: 613, 642 644, and 649
• 604 Wear Plate - Optional

Mounting Fasteners
• Wood and machine screws provided
• Available with thrubolts (TB-) (please contact us)
