Adams Rite 8099M0 - Active Dummy Bar without Latching Mechanism without Monitoring Switches

Adams Rite 8099M0 - Active Dummy Bar without Latching Mechanism without Monitoring Switches

The 8099M0 Dummy Push Bar is designed for narrow stile aluminum, hollow metal, and wood applications that do not require a latching/locking life-safety exit device.

Function

Active Dummy Push Bar with no latch mechanism.

Features

Materials

The push bar of this active dummy bar is made of extruded aluminum, available in a variety of architectural finishes.

Stile Width

For hollow metal and wood applications: minimum 3-3/4" [95.3 mm]

For aluminum applications: minimum 2" [50.8 mm] stile.

Fasteners

For hollow metal and wood applications: standard self-tapping screws and machine screws.

For aluminum applications: standard machine screws.

Push Bar Length

Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.

FINISHES

Click here for our Definitive List of Door Hardware Finishes

Standard Package

Individually boxed.

Shipping Weight

6 lbs [2.72 kg].

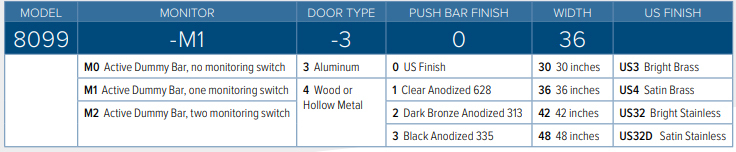

Options

This active dummy bar is available for aluminum, hollow metal and wood applications. Specify door type and width when ordering.

Optional Sex Bolt Kits 26-0584 (two required per device) available separately

Click here to download Catalog
