Specifications

Door Preparation

Requires standard 2-1/8" (54mm) bore with through bolts.

Backset

2-3/8" (60mm) or 2-3/4" (70mm)

Door Thickness

Fits 1-3/8" to 1-3/4", factory set for 1-3/4". 1-3/8" doors require the use of spacers.

Latch

Stainless Steel 1/2" (13mm) throw, UL Listed, spring latch

Latch Front

1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.

Strike

4-7/8" (ANSI (124mm)

Handing

non-handed

Function

Privacy

Latch operated by lever either side except when outside lever is locked by pushing inside button. Pushing inside button changes indicator display status outside. Outside lever unlocked by turning inside lever, using emergency coin turn, or closing door. Inside lever always operates latch.

Certifications

• Grade 1 Certified, ANSI/BHMA A156.2, Series 4000

• UL/cUL Listed for use on 3 hour, A label or lesser doors

• Lever conforms to ADA clear opening width requirements of ANSI A117.1

• Lever complies with California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) with return to within 1/2" (13mm) of door face

• Patent Pending

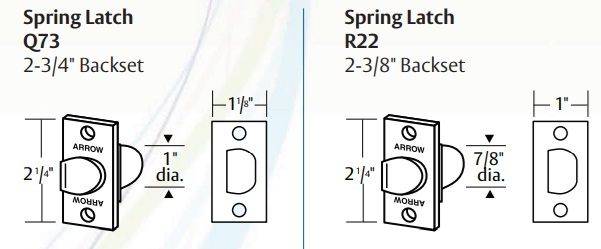

Arrow APL Cylindrical Indicator Lock Latch Options

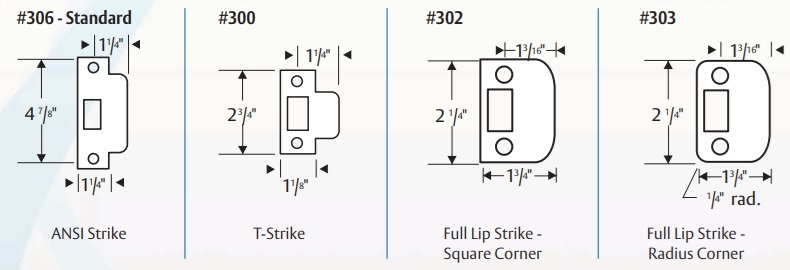

Arrow APL Cylindrical Indicator Lock Strike Options
