Command Access MLRK1-YAL6 | Motorized Latch Retraction (MLR) Kit for Yale 6000 Series Exit Device

FEATURES

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.

• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!

• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position

• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel

• 6” cable with robust Quick Molex Connector for MM4S module to 6’ Power lead to easily connect to power supply lead.

SPECIFICATIONS

Voltage:

VOLTAGE RANGE – 24 TO 28 VDC

SYSTEM PROTECTION – UNIT SHUTDOWN WHEN VOLTAGE EXCEEDS 28VDC

STANDARD - AVERAGE CURRENT PEAK: 900MA, AVERAGE CURRENT HOLD: 215MA

PTS ADJUSTMENT – APPROX. 1/4”

Wire Run:

• 300’ with 18ga wire

Device Cutdown Details:

36”/ 48” - 6.5” Filler Plate Needed

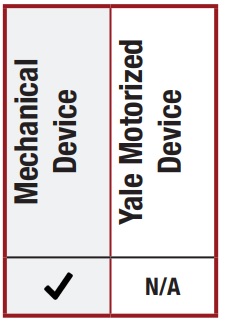

Command Access MLRK1-YAL6 Matrix

Command Access MLRK1 Series Latch Retraction Kits Product Reference Chart

Command Access MLRK1-YAL6 | Motorized Latch Retraction (MLR) Kit for Yale 6000 Series Exit Device

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. An easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

FEATURES

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.

• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!

• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position

• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel

• 6” cable with robust Quick Molex Connector for MM4S module to 6’ Power lead to easily connect to power supply lead.

SPECIFICATIONS

Voltage:

VOLTAGE RANGE – 24 TO 28 VDC

SYSTEM PROTECTION – UNIT SHUTDOWN WHEN VOLTAGE EXCEEDS 28VDC

STANDARD - AVERAGE CURRENT PEAK: 900MA, AVERAGE CURRENT HOLD: 215MA

PTS ADJUSTMENT – APPROX. 1/4”

Wire Run:

• 300’ with 18ga wire

Device Cutdown Details:

36”/ 48” - 6.5” Filler Plate Needed

Command Access MLRK1-YAL6 Matrix

Command Access MLRK1 Series Latch Retraction Kits Product Reference Chart
