Schlage
GRADE 2 CYLINDRICAL INTERCONNECTED LOCKS - Entrance Lock | Schlage CS210PD
No reviews yet
Write a Review
Write a Review
Schlage
GRADE 2 CYLINDRICAL INTERCONNECTED LOCKS - Entrance Lock | Schlage CS210PD
SKU:
SCH-CS210PDB60
Shipping:
Calculated at Checkout
$411.53
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Schlage CS210PD - GRADE 2 CYLINDRICAL INTERCONNECTED LOCK - Entrance Lock (Schlage CS Series)
The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. Eighteen lever designs, two outside deadbolt designs and two inside escutcheon designs - each in a choice of seven finishes - ensure the right aesthetics for whatever type of project. The adjustable escutcheon allows each lock to easily support either 4" or 5 1 ⁄2" door preps, eliminating any job-site surprises.
Entrance, Single Locking Function
Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Latch retracted by lever from either side. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit.
Features and benefits
Aesthetics
-18 lever styles
-Two deadbolt designs
-Two escutcheon designs
-Seven finishes
-Suites with F Series and S Series tubular locks
Flexible
-Field-configurable for 4" or 5 1 ⁄2" door prep
-Supports 2 3⁄8" or 2 3⁄4" backset
-1 3⁄4" - 2" door range standard; 1 3⁄8" available
Key systems
-Standard, FSIC, and SFIC
Reliable
-ANSI/BHMA Grade 2 (A156.12)
-3 hour UL fire rating
Standard Features
Certification: ANSI/BHMA Certified A156.12-2013, Grade 2, UL listed for 3-hour fire door With SFIC interchangable core cylinders: Grade 3 Security
Deadbolt: 1 X 2-1/4", dual option faceplate, (square corner standard, round corner included in package), 1" housing diameter, 1" throw
Latch: 1" x 2-1/4" dual option faceplate (square corner standard, round corner included in package). 1" edge bore required
Strikes: 1-1/8" X 2-3/4", Square corner (deadbolt) and 1-5/8" X 2-1/4", Square corner, full lip, no box, 1 5/8" x 2 1/4" (Deadlatch)
Backset: Adjustable backset, fits 2-3/8" or 2-3/4"
Cylinders: 6-pin, solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Door Range: 1-3/4" to 2" standard (1-3/8" available, must be specified)
Keys: Nickel silver cut keys, 6-pin, S123 section
Center to Center: Fits 4" or 5 1/2" (factory default) center to center door preps
Detailed Look

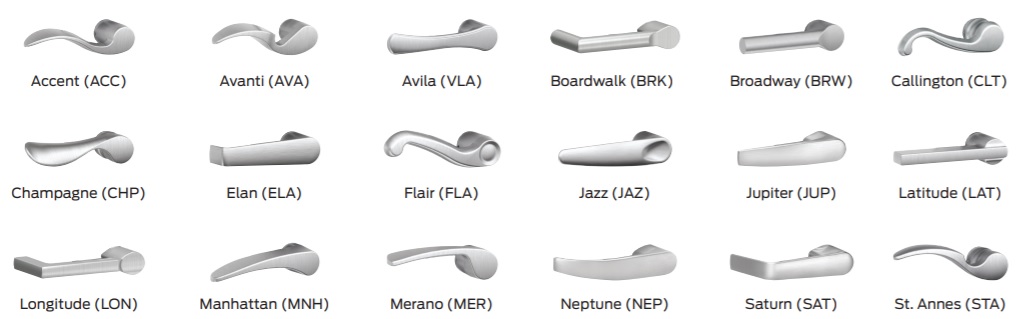

Lever Styles

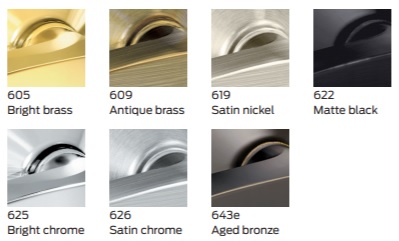

Finishes

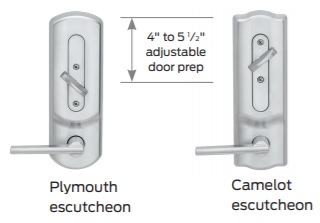

Escutcheon Styles
Deadbolt Styles
Additional Information
- Option:Choose Handing (Click here to see our Door Handing Guide):
- https://locksandsafes.com/blog/door-hardware-handing-guide/
- Option:Choose Finish (Click here to see our Detailed Door Hardware Finish Guide):
- https://locksandsafes.com/blog/lock-and-door-hardware-finishes/
- Option:Choose Backset (What is a Backset? Click here to read our blog explaining Backset):
- https://blog.locksandsafes.com/2021/02/02/what-is-a-backset/
