Schlage S Series | Grade 2 Tubular Levered Locks
No reviews yet
Write a Review
Write a Review
Schlage
Schlage S Series | Grade 2 Tubular Levered Locks
SKU:
SCH-S
Shipping:
Calculated at Checkout
$96.39
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Schlage S Series | Grade 2 Tubular Levered Locks
Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.
Specifications
Handing: Not handed, except Flair design.
Door thickness: 1 3⁄8" to 2" (35 mm-51 mm) except S40D: 1 3⁄8" to 1 7 ⁄8” (35 mm-48 mm)
Backset: Universal backset latches standard, fit either 2 3⁄8" (60 mm) or 2 3⁄4" (70 mm). 5" (127 mm) optional.
Fronts: Steel. 1" x 21 ⁄4" (25 mm x 57 mm) square corner, beveled, for 2 3⁄4" backset standard.
Lock chassis: Tubular construction. Zinc with steel cover.
Latch bolt: Brass, chrome plated, 1 ⁄2" (13 mm) throw, deadlocking.
Exposed trim: Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze.
Strike: T-strike 11 ⁄8" x 2 3⁄4" (29 mm x 70 mm) x 11 ⁄8" (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Certifications
ANSI Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C. California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with a return to door of 1 ⁄2" (64mm) or less comply.
UL / cUL: All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
Schlage S Series Lever Styles

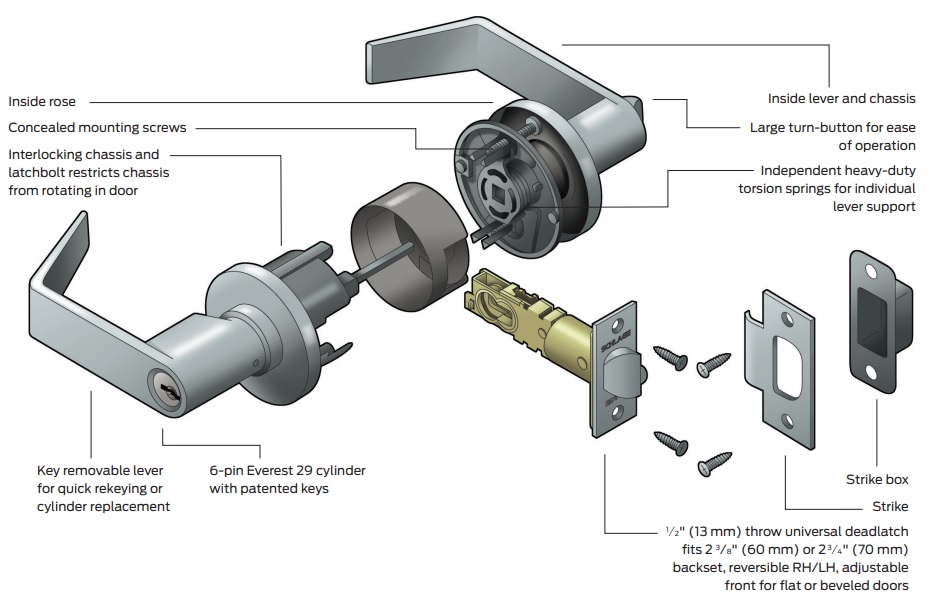

Schlage S Series Exploded View
Additional Information
- Option:Choose Function (What is a lock function? Click here to view our blog detailing lock functions):
- https://blog.locksandsafes.com/2020/07/28/the-definitive-guide-to-lock-functions/
- Option:Choose Finish (Click here to see our Detailed Door Hardware Finish Guide):
- https://blog.locksandsafes.com/2020/07/28/lock-and-door-hardware-finishes/
- Option:Choose Handing (What is it? Click link here to see our Door Handing Guide. Only required for Flair Lever):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
- Option:Choose Cylinder (What is it? Click link here to see our guide on Cylinders and Keyways):
- https://blog.locksandsafes.com/2021/03/17/lock-cylinder-and-keyway-guide/
