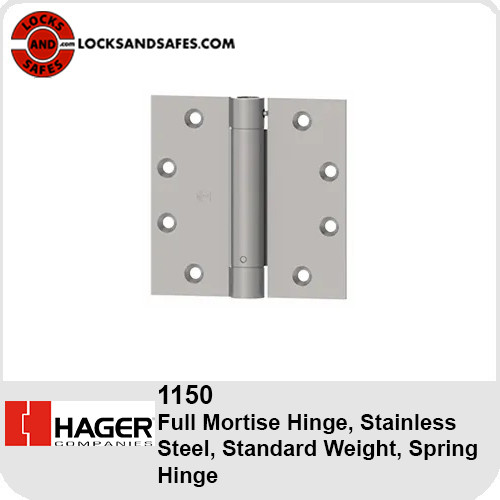

Hager 1150 Full Mortise Commercial Hinges | Standard Weight Spring Hinge Stainless Steel
Certifications
ANSI K51071F
Fastener Size - Wood
#12 x 1-1/4"
Fastener Size - Machine
12-24 x 1/2"
Knuckles
3
Material
Stainless Steel with Stainless Steel Pin
Notes
For use on 1-3/4” (45 mm) thick doors
UL approved for use on doors 4’0” x 8’0”, but Hager does not recommend using spring hinges on doors over 7’0” in favor of hydraulic door closers.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
Doors over 3’0” x 7’0” or over 100 lbs. require three spring hinges. Doors 150-180 lbs. require four spring hinges.
Options
Available with hospital tip (HT) - voids UL.
Available with raised barrel (RBB/RBS) - UL approved.
Product Description
Full Mortise, Spring Hinge, Standard Weight

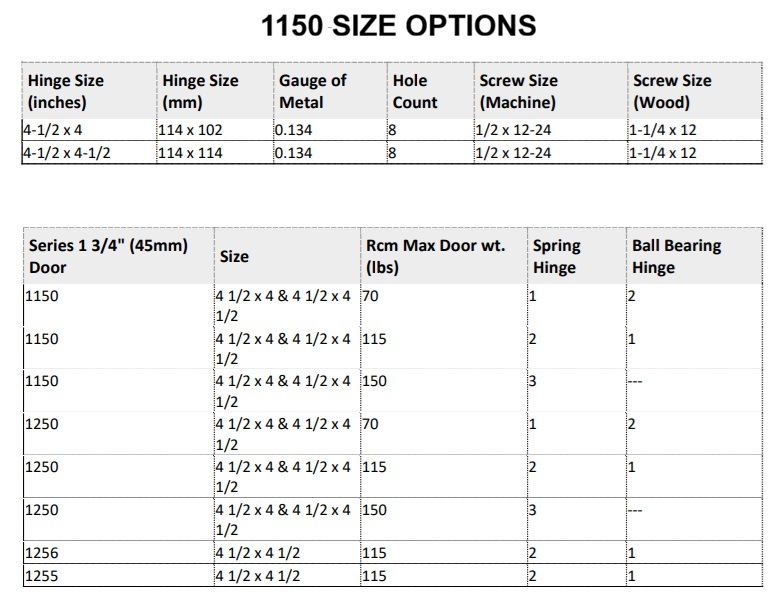

Hager 1150 Full Mortise Hinge Size Option
