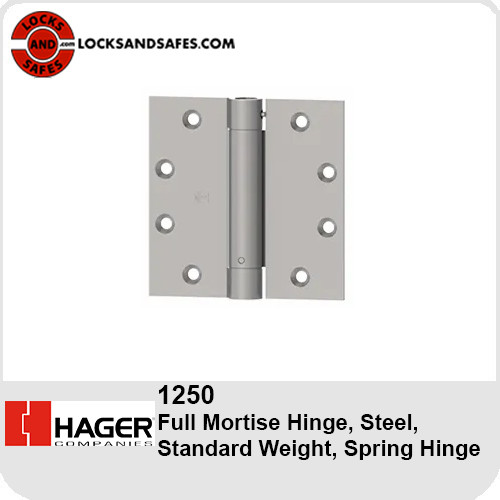

Hager 1250 Full Mortise Commercial Hinges | Standard Weight Spring Hinge Steel Base Material
Certifications
ANSI K81071F
Finishes
USP, US3, US4, US10, US10A, US10B, US26D
Knuckles
3
Material
Steel with Steel Components
Notes
UL approved for use on doors 4'0" x 8'0", but Hager does not recommend using spring hinges on doors over 7'0" in favor of hydraulic door closers.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
Doors over 3'0" x 7'0" or over 100 lbs require three spring hinges. Doors 150-180 lbs require four spring hinges.
Options
Available with hospital tip (HT) - voids UL.
Available with raised barrel (RBB/RBS) - UL approved.
Product Description
Full Mortise, Spring Hinge, Standard Weight, Square Corner

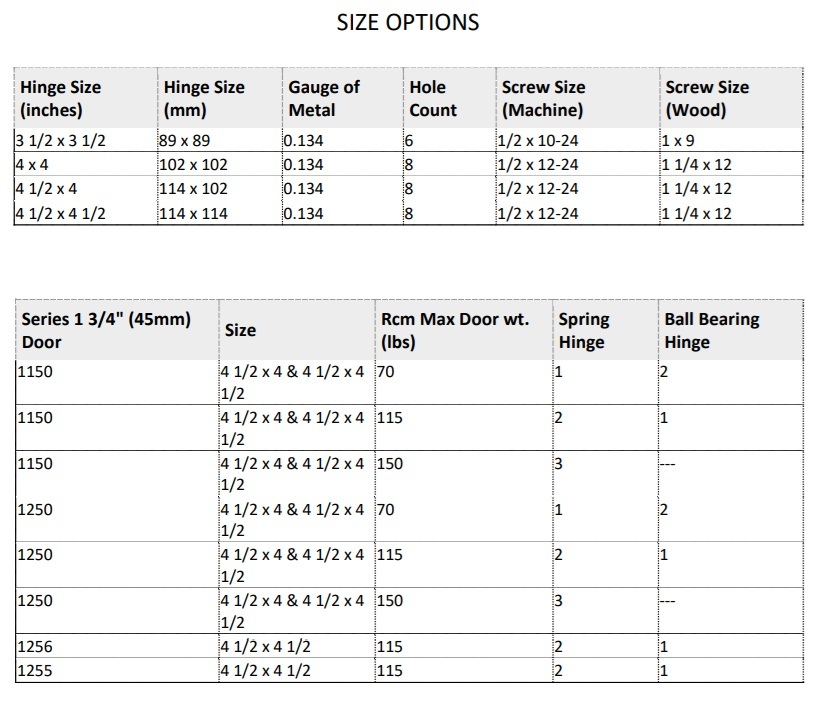

Hager 1250 Full Mortise Hinge Size Option
