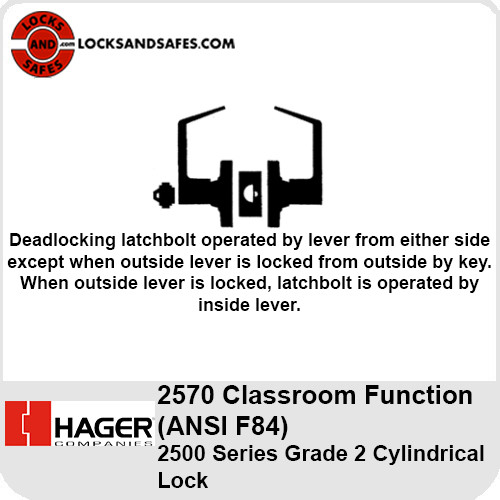

FUNCTION

FEATURES

• No exposed mounting screws

• Non-handed

• Conventional cylinder and small format interchangeable core option available

APPLICATIONS

• Standard duty commercial

• Standard door prep - 2-1/8” (54 mm) diameter (bore)

• Latch hole - 1” (25.4 mm) diameter (cross bore)

CERTIFICATIONS

• Meets BHMA ANSI A156.2, Series 4000, Grade 2

• ADA Compliant ANSI A117.1 Accessibility Code

• UL/cUL Listed for all functions up to 3 hours “A” label single doors

• UL 10C Positive Pressure Related Lever Options: Archer, Withnell levers

SPECIFICATIONS

Exposed Trim:

• Wrought brass, bronze, and stainless steel

• Lever is zinc based, plated to match BHMA symbols

Rose Diameter: 3-11/32” (85 mm)

Lock Chassis:

• Heavy gauge steel, zinc dichromated for corrosion resistance

• “Non-clutching” exterior lever on keyed functions

• Removable thru-bolts

• Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty

Keys: Two operating keys supplied per lock

Door Thickness: 1-3/8” - 1-3/4” (35 mm - 45 mm)

Backset:

• 2-3/4” (70 mm) - Standard

• 2-3/8” (60 mm) - Optional

Latchbolt:

• 1/2” (13 mm) throw, stainless steel

• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate for 2-3/4” (70 mm) backset

• 1” x 2-1/4” (25 mm x 57 mm) faceplate for 2-3/8” (60 mm) backset

• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions and 25 function only

Strike:

• 3935 ASA 1-1/4” x 4-7/8” (32 mm x 124 mm) strike standard

• Optional strikes available

Notes:

Blank plate projection is 13/16” (21 mm) for function 25

Hager 2500 Cylindrical Lock Lever Options
