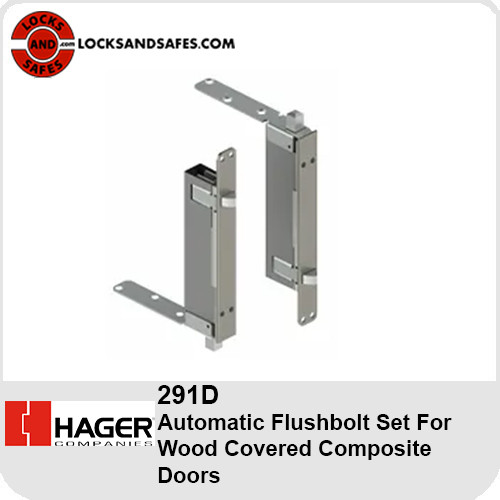

Hager 291D | Automatic Flush Bolt Set for Wood Covered Composite Doors

Hager 291D | Automatic Flush Bolt Set for Wood Covered Composite Doors

Product Description
Automatic Flush Bolt Set for Wood Covered Composite Doors

Bolt Backset
3/4" (19.5 mm)

Bolt Throw
3/4" (19 mm)

Box Quantity
1 Pair

Case Quantity
12 Pairs

Certifications
1-1/2 hour fire rating on wood doors up to 4' wide by 8' tall (B Label rating)
Meets ANSI 156.3 Type #25

Faceplate
1" x 8-1/2" (25.5mm x 216mm)

Finishes
US10B, US32D

Flattened Round Bolt Head
1/2" (13 mm)

Material
Stainless steel with steel components

Mortise Strike Length
2-1/4" (57 mm)

Mortise Strike Width
15/16" (24 mm)

Notes
Consists of two 291S
Thermal lock automatically locks inactive door under high fire/heat conditions
280X Dust Proof Strike are recommended for use with these sets
Used in pairs at top and bottom of inactive door
Fully automatic - bolts retract when active door is opened; bolts extend when active door is closed
Non-handed
Bolt head rods are adjustable
