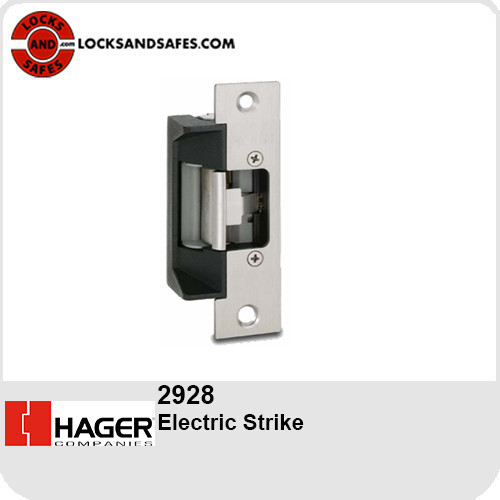

Hager 2928 Electric Strike

Hager 2928 Electric Strike

MODEL

2928-SC: 4-7/8” (124 mm) x 1-1/4” (32 mm) square corner faceplate

2928-RC: 4-7/8” (124 mm) x 1-1/4” (32 mm) radius corner faceplate

2928-6R: 6-7/8” (175 mm) x 1-1/4” (32 mm) radius corner faceplate

2928-7R: 7-15/16” (202 mm) x 1-7/16” (36 mm) radius corner faceplate

APPLICATION

• Cylindrical and mortise locksets with up to 3/4” (19 mm) throw latch bolts with 1/8” door gap

• Access controlled ingress for fail secure or fail safe openings (field selectable)

• Field selectable voltage - 12/24V, AC/DC

• Ideal for medium traffic openings

LATCH

• 1/2” (13 mm)

• 5/8” (16 mm) with 1/8” (3 mm) door gap

• 3/4” (19 mm)

FEATURES

Components:

• Quick and easy installation with low profile 1-3/16” backset

• Latch position status (standard)

• Keeper locked/unlocked status (standard)

• Keeper open/closed and status (optional)

• Compact low profile design with internally mounted solenoid and factory supplied mounting tabs

• Non-handed (reversible)

• 1/4” (6 mm) horizontal alignment adjustment

• All stainless steel parts with durable diecast body for corrosion resistance

• Fewer moving parts for maximum life

• Stainless steel is standard with square corner faceplates

• Aluminum standard with radius corner faceplate

• Plug in tail connectors

CERTIFICATIONS

• ANSI A156.31, Grade 2

• UL 1034 - Burglary Resistant Electric Locking Mechanisms (interior use applications)

ELECTRICAL SPECIFICATIONS

Input:

Current/Voltage

• 200/100 mA @ 12/24VDC

• 140/70 mA @ 12/24VAC

SPDT, 3A @ 30VDC - Latch Monitoring

SPDT, 3A @ 30VDC - Keeper Closed & Locked Status

SPDT, 3A @ 30VDC - Keeper Open/Closed (Optional)

MECHANICAL SPECIFICATIONS

Dimensions:

1-1/4” (32 mm) W x 4-7/8” (124 mm) H x 1-3/16” (30 mm) D
