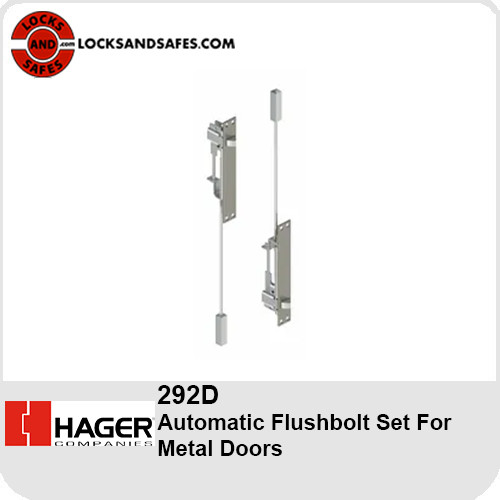

Hager 292D | Automatic Flush Bolt Set for Metal Doors
Product Description
Automatic Flush Bolt Set for Metal Doors
Bolt
Backset: 3/4" (19.5 mm)
Bolt Throw
3/4" (19 mm)
Box Quantity
1 pr
Case Quantity
12 prs
Certifications
3-hour fire rating on metal doors up to 4' wide x 8' tall (A label rating)
Meets ANSI 156.3 Type #25
Faceplate
1" x 6-3/4" (25.6 mm x 171.8 mm)
Finishes
US10B, US32D
Flattened Round Bolt Head
1/2" (13 mm)
Includes
2 each 292
Material
Stainless steel with steel components
Mortise Strike Length
2-1/4" (57 mm)
Mortise Strike Width
15/16" (24 mm)
Notes
Contains two 292S flush bolts
Thermal lock automatically locks inactive door under high fire/heat conditions
280X dust proof strike are recommended for use with these sets
Used in pairs at top and bottom of inactive door
Fully automatic- bolts retract when active door is opened; bolts extend when active door is closed
Non-handed
Bolt head rods are adjustable
