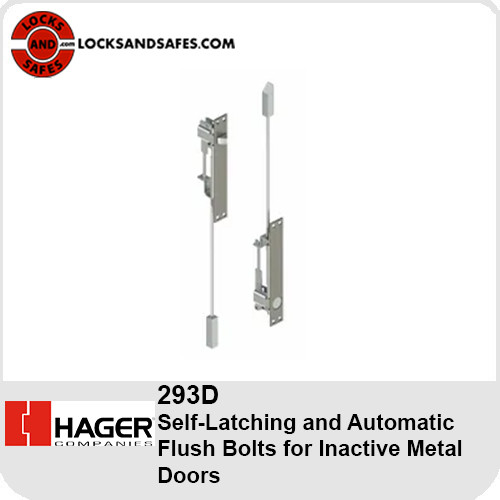

Hager 293D | Self-Latching and Automatic Flush Bolts for Inactive Metal Doors
Product Description
Self-Latching Top and Automatic Bottom Flush Bolts for Inactive Metal Doors
Bolt Backset
3/4" (19.5 mm)
Bolt Throw
3/4" (19 mm)
Box Quantity
1 Pair
Case Quantity
12 Pairs
Certifications
3-hour fire rating on metal doors up to 4' wide x 8' tall (A Label rating)
ANSI A156.3 Type #25 and ANSI A156.16 Type #27
Faceplate
1" x 6-3/4" (25.6 mm x 171.8 mm)
Finishes
US10B, US32D
Flattened Round Bolt Head
Square bolt head 1/2" (13 mm)
Includes
1 each 292S and 1 each 293S
Material
Stainless steel with steel components
Notes
Thermal lock automatically locks inactive door under high fire/heat conditions
280X Dust Proof Strike are recommended for use with these sets
Consists of one 292S and one 293S for two point latching
Inactive door remains latched until active door is opened, releasing the automatic bottom bolt
Top bolt can be manually released by pressing plunger
Inactive door will re-latch automatically when closed
Non-handed
Bolt head rods are adjustable
293S top flush bolt may be paired with 2-649-0166, 1-649-3926, or 1-269-3927 fire bolts
T-Strike
1-1/8” X 2-3/4” (28.6 mm x 69.8 mm)
